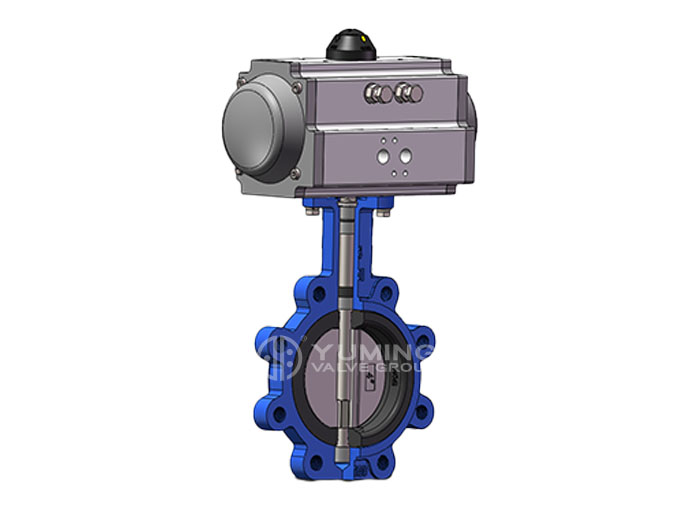

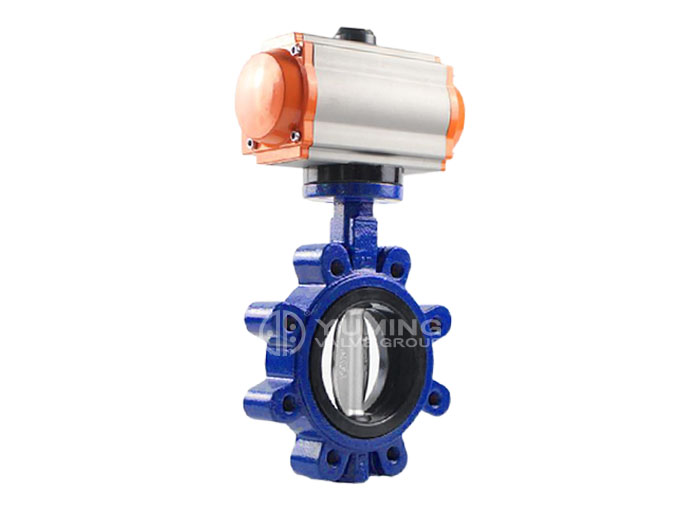

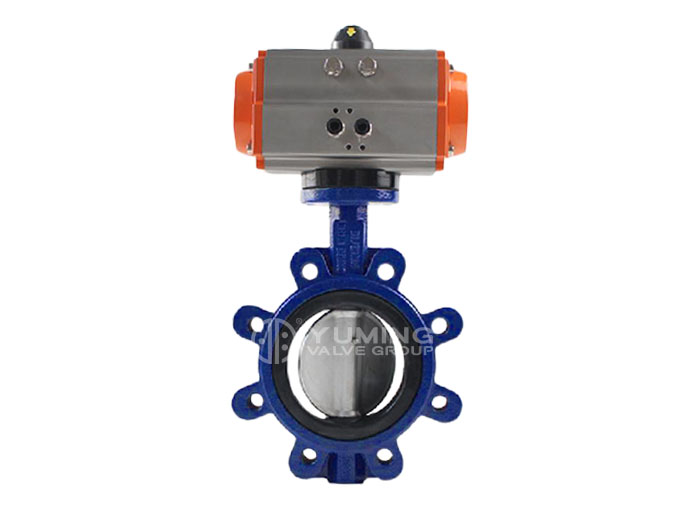

Pneumatic Operated Lug Butterfly Valve
Pneumatic Operated Lug Butterfly Valve
Pneumatic Operated Lug Butterfly Valve
Pneumatic Operated Lug Butterfly Valve

Pneumatic Operated Lug Butterfly Valve

Size: DN50-DN600
Nominal Pressure: PN10/PN16/Class 150/10K
Suitable Temperature: -20~120℃
Applicable Medium: Clear water, neutral liquid, weak acid and alkali, sea water, Oils, etc.
Body Materials: Ductile Iron
Application field: Municipal construction, water treatment, water supply and drainage, water conservancy projects, etc.
RELATED
INQUIRY
Related
INQUIRY
RELATED


Product Advantages
1、The structure is simple and compact, the rotation of 90 °is quickly to open and close, and the service life is long. The side flange can meet the PN10, PN16, 150Lb and 10K flanges;
2、All products can provide the pressure test: All Yuming products can provide the pressure test report before leaving the factory.
3、High performance seat rubber: The rubber content is 50%, and the switch life is more than 30000 times
4、Axial seal: The shaft is supported by 4 oil-free bearings, double seal structure design of oil seal and O-ring, smaller torque and reliable seal; The upper and lower shaft holes of DN350 and above large diameter valves are designed with packing box structure, and the packing is pressed by the gland to realize sealing.
5、Surface coating: Epoxy powder coating is adopted, with strong adhesion and good weather resistance. It can be used indoors and outdoors.
6、Pneumatic Operated: The pneumatic operated adopts double piston rack structure, precise meshing, high efficiency and outputting constant torque. The cylinder body is made of extruded aluminum alloy with high strength and hardness. The sliding bearing is made of low friction materials, low friction coefficient, flexible rotation and long service life.
INQUIRY

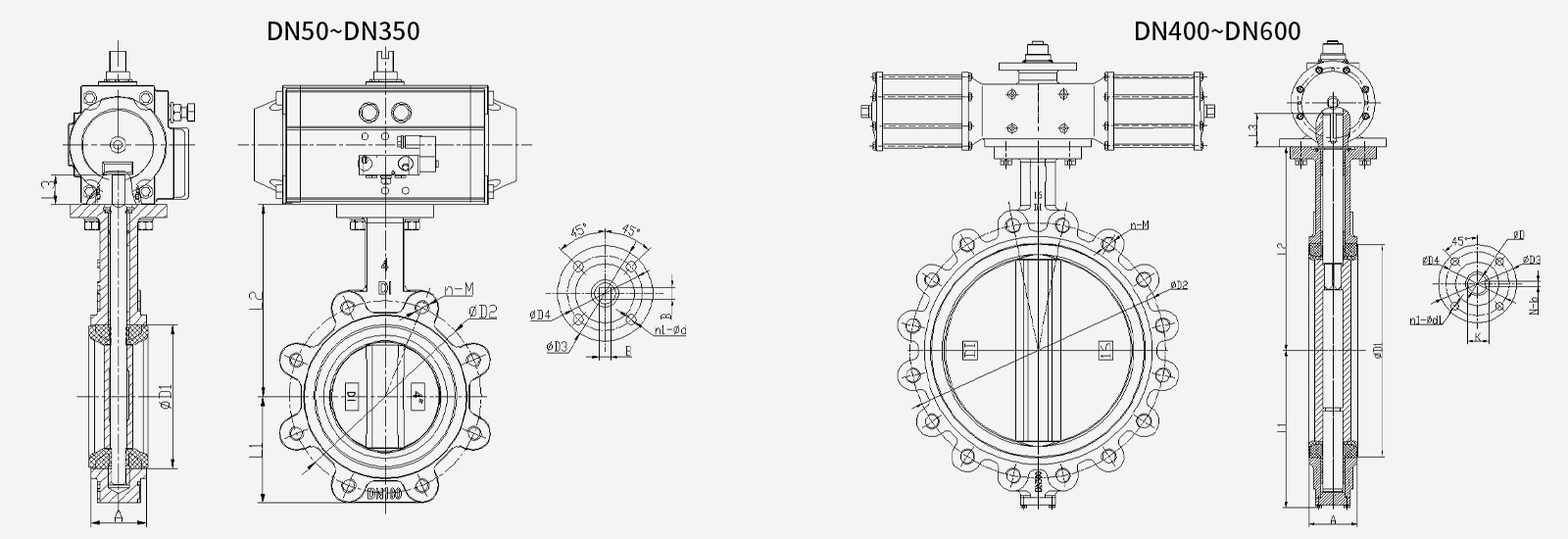

DN50--DN350
DN A D1 L1 L2 L3 B PN16 PN10 150LB φD3 φD4 n1-φd
              D2 n-M D2 n-M D2 n-M
2″ DN50 42 73.3 54 161 25 9 125 4-M16 125 4-M16 120.7 4-5/8″ 65 50 4-8
2.5″ DN65 44 86 62 175 25 9 145 4-M16 145 4-M16 139.7 4-5/8″ 65 50 4-8
3″ DN80 45 100.9 82 181 25 9 160 8-M16 160 8-M16 152.4 4-5/8″ 65 50 4-8
4″ DN100 51.5 132 99 200 28 11 180 8-M16 180 8-M16 190.5 8-5/8″ 90 70 4-10
5″ DN125 54 156 114 213 28 14 210 8-M16 210 8-M16 215.9 8-3/4″ 90 70 4-10
6″ DN150 55 185 129 236 28 14 240 8-M20 240 8-M20 241.3 8-3/4″ 90 70 4-10
8″ DN200 59 235 150 260 33 17 295 12-M20 295 8-M20 298.5 8-3/4″ 125 102 4-12
10″ DN250 66 289 186 292 33 22 355 12-M24 350 12-M20 362 12-7/8″ 125 102 4-12
12″ DN300 76 341 218 337 33 22 410 12-M24 400 12-M20 431.8 12-7/8″ 125 102 4-12
14″ DN350 76 372 242 368 45 22 470 16-M24 460 16-M20 476.3 12-1″ 125 102 4-12

DN400--DN600
DN A D1 L1 L2 L3 φD N-b K PN16 PN10 150LB φD3 φD4 n1-φd1
                  D2 n-φd D2 n-φd D2 n-φd
16″ DN400 86.5 436 320 403 52 33.15 1-10 36.2 525 16-M27 515 16-M24 539.8 16-1″ 175 140 4-18
18″ DN450 104.6 487 351 415 52 38 1-10 41 585 20-M27 565 20-M24 577.9 16-1 1/8″ 175 140 4-18
20″ DN500 130 532 386 466 64 41.15 1-12 44.2 650 20-M30 620 20-M24 635 20-1 1/8″ 175 140 4-18
24″ DN600 152 651 446 525 70 50.65 1-16 54.7 770 20-M33 725 20-M27 749.3 20-1 1/4″ 210 165 4-22

Inquiry
If you would like to contact us for more information about our products ,please fill out the form below,thank you.
*Name
*E-mail
Phone
Country
*Message
Quick consultation
Name:
Email:
Phone:
Message:
Copyright: 1972-2020 Yuming Valve Group Co,Ltd. All rights reserved.
