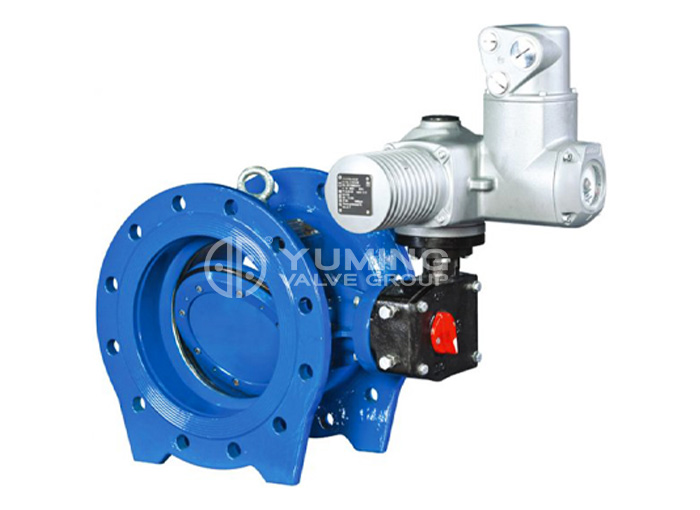

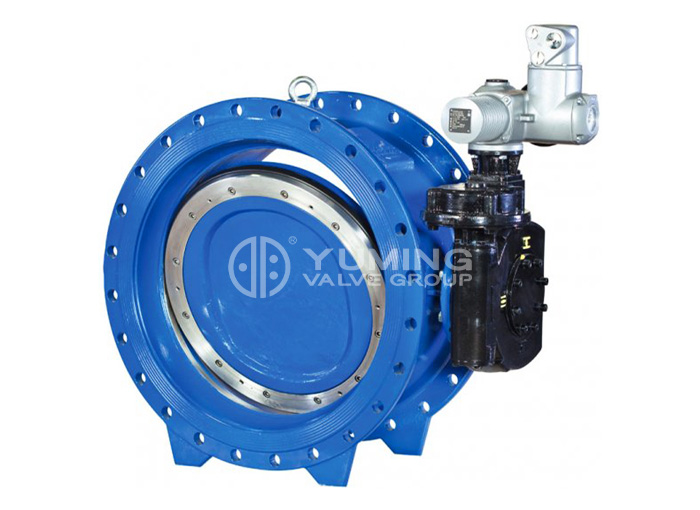

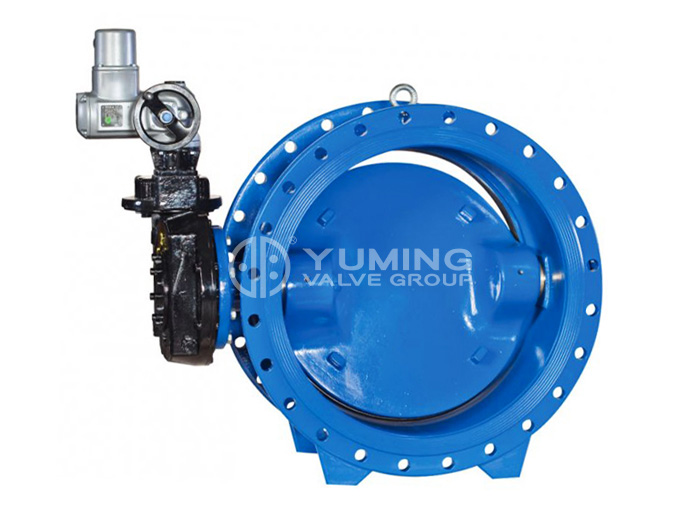

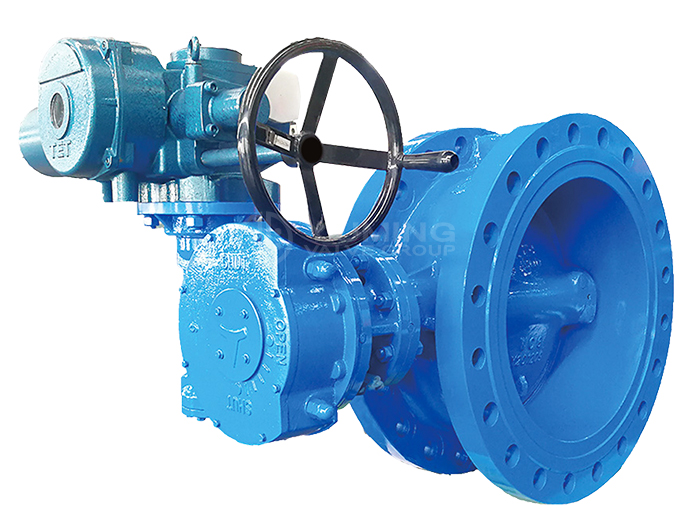

Electric three-eccentric metal hard seal butterfly valve
Electric three-eccentric metal hard seal butterfly valve
Electric three-eccentric metal hard seal butterfly valve

Electric three-eccentric metal hard seal butterfly valve

Size DN40~DN2000
Pressure Rating PN10, PN16, CL150
Material SS304, SS316,Ductile Iron/WCB
Design Standard EN 593, MSS SP67, API 609, BS5155
Application medium Water, Oil and gas
Application Temperature -10 °C to 150°C
INTRODUCTION
DATA
Related
INQUIRY
INTRODUCTION
Parameter:
Electric three-eccentric metal hard seal butterfly valve is mainly used for drainage of water plants, power plants, steel smelting, chemical industry, water source engineering, environmental facility construction, etc is mainly used for drainage of water el plants smelting, power , chemical industry, water source engineering, environmental facility construction, etc., especially suitable for water pipelines, as regulating and intercepting equipment. Compared with the centerline butterfly valve, the double eccentric butterfly valve is more resistant to high pressure and good stability. Compared with other valves, the larger the caliber, the lighter the material, and the lower the cost.

Features
1.Protection of gearbox IP 68-8 (submersion up to 8 m of water) and actuator IP 68 (submersion up to 8 m of water, during 96 hours and 10operations)

①With position indicator.

②Clockwise Close (CC).

③For installation above ground and in non-flooded chambers.

④Designed and tested to an endurance level of 2500 cycles minimum, inaccordance with EN 1074-1 and 2.

⑤Supplied with a handwheel.

the

2.Reduces resilient seal’s wear and tear ensuring detachment from the body seat ring the moment the valve begins to open.

①reduces pressure loss in fully open position by the disc

②parking in a zone of reduced flow.

③lower torque requirement to rotate the disc leads to less

④wear and longer life of the gasket and other elements.

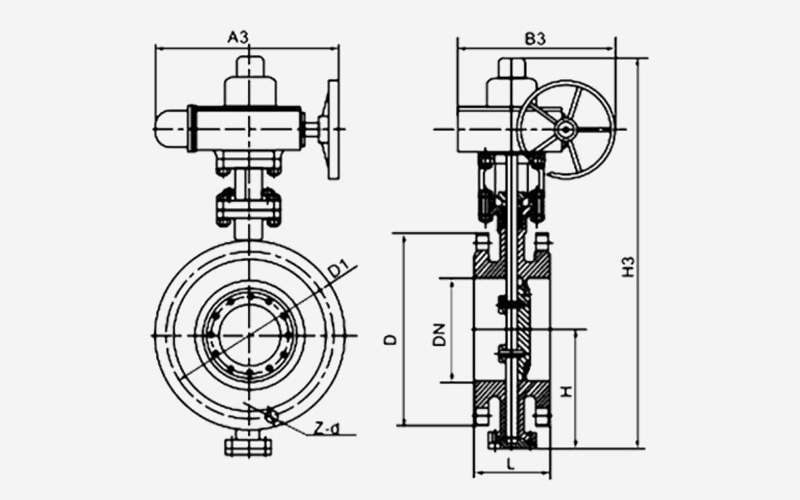

DATA
SIZE   PN10 PN16
DN NPT L D2 n-d D2 n-d
100 4" 127 180 8-Φ19 180 8-Φ19
125 5" 140 210 8-Φ19 210 8-Φ19
150 6" 140 240 8-Φ22 240 8-Φ22
200 8" 152 295 8-Φ22 295 12-Φ22
250 10" 165 350 12-Φ22 355 12-Φ28
300 12" 178 400 12-Φ22 410 12-Φ28
350 14" 190 460 16-Φ22 470 16-Φ28
400 16" 216 515 16-Φ28 525 16-Φ31
450 18" 222 565 20-Φ28 585 20-Φ31
500 20" 229 620 20-Φ28 650 20-Φ24
600 24" 267 725 20-Φ31 770 20-Φ37
700 28" 292 840 24-Φ31 840 24-Φ37
800 32" 318 950 24-Φ34 950 24-Φ40
900 36" 330 1050 28-Φ34 1050 28-Φ40
1000 40" 410 1160 28-Φ37 1170 28-Φ43
1200 48" 470 1380 32-Φ40 1390 32-Φ49
1400 56" 530 1590 36-Φ43 1590 36-Φ49
1600 64" 600 1820 40-Φ49 1820 40-Φ56
