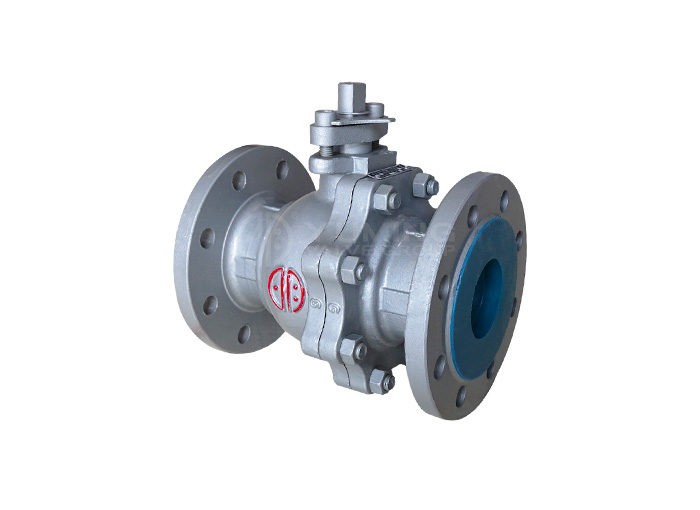

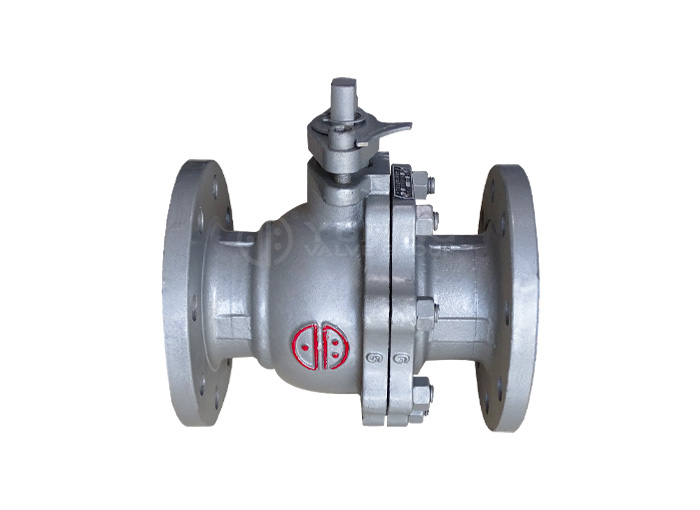

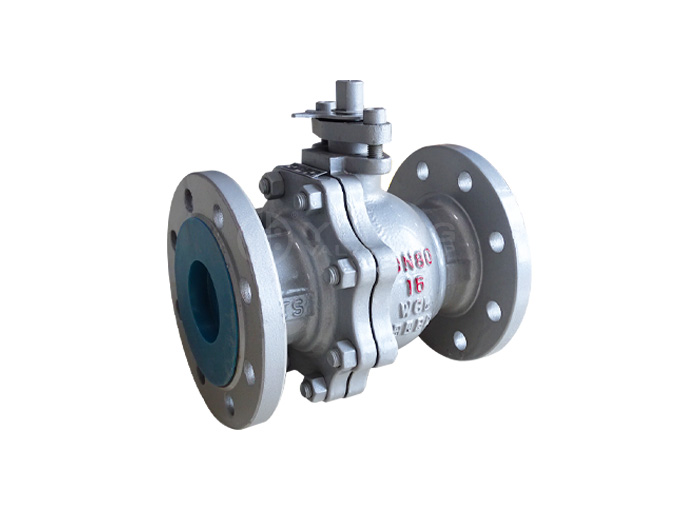

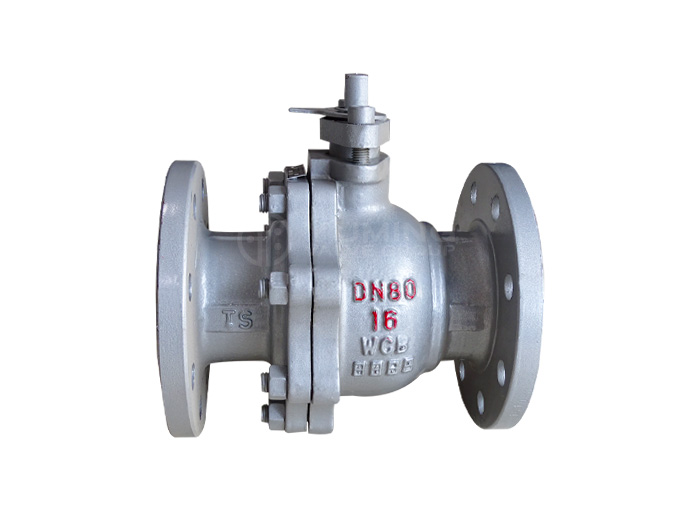

Cast Steel Floating Ball Valve-Yuming Valve

INTRODUCTION

Features:

Applicable medium：Water, steam, oil.
Suitable temperature：-29℃～180℃
Application field： Municipal construction, water treatment, electricity, petroleum, water supply and drainage, water conservancy projects.

Product advantages:

1.Low fluid resistance
The fluid resistance is small, and the resistance coefficient is equal to the pipe length.

2. Simple structure
Simple structure, small size, light weight.

3.Good sealing
Tight and reliable, the sealing material of ball valve is widely used in plastic, sealing and vacuum system.

4. Convenient operation
Easy to operate, open and close quickly, from full open to full close as long as 90 degrees rotation, easy to control distance.

5. Convenient maintenance
Convenient maintenance, simple structure of ball valve, seal ring is generally mobile, easy to remove and replace.

6.Do not cause erosion of valve sealing surface
The sealing surface of the ball and seat is isolated from the media when fully open or closed.

7. Wide application
Wide range of applications, from small to a few millimeters, to several meters, from high vacuum to high pressure can be applied.

DATA

Pressure:PN16

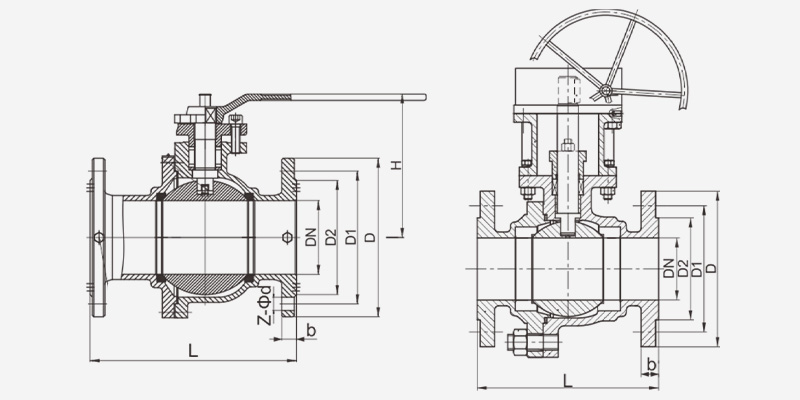

SIZE	DN	L	D	D1	D2	b	Z-Ø d	H	L0
1/2”	15	130	95	65	45	14	4-ø 14	78	140
3/4”	20	130	105	75	55	14	4-ø 14	84	160
1”	25	140	115	85	65	14	4-ø 14	95	180
1 1/4”	32	165	135	100	78	16	4-ø 18	150	250
1 1/2"	40	165	145	110	85	16	4-ø 18	150	300
2”	50	203	160	125	100	16	4-0 18	170	350
2 1/2”	65	222	180	145	120	18	4-0 18	195	350
3”	80	241	195	160	135	20	8-0 18	215	400
4”	100	305	215	180	155	20	8-0 18	250	500
5”	125	356	245	210	185	22	8-0 18	265	600
6”	150	394	280	240	210	24	8-0 23	270	800
8”	200	457	335	295	265	24	12-ø 23	330	800
10"	250	533	405	355	320	26	12-ø 25	450	1300
Pressure:PN25
SIZE	DN	L	D	D1	D2	b	Z-Ø d	H	L0
1/2"	15	130	95	65	45	16	4-ø 14	103	100
3/4”	20	130	105	75	55	16	4-0 14	112	160
1"	25	140	115	85	65	16	4-ø 14	123	160
1 1/4”	32	165	135	100	78	18	4-ø 18	150	250
1 1/2”	40	180	145	110	85	18	4-ø 18	156	250
2”	50	200	160	125	100	20	4-0 18	172	350
2 1/2”	65	220	180	145	120	22	8-0 18	197	350
3”	80	250	195	160	135	22	8-ø 18	222	450
4”	100	280	230	190	160	24	8-0 18	253	450
5”	125	320	270	220	188	28	8-0 25	275	600
6"	150	360	300	25	218	30	8-0 25	286	800
8”	200	400	360	310	278	34	12-ø 25	340	1200
10”	250	530	425	370	332	36	12-ø 30	470	1400
Pressure:PN40
SIZE	DN	L	D	D1	D2	b	Z-Ø d	H	L0
1/2”	15	140	95	65	45	16	4-ø 14	103	100
3/4”	20	152	105	75	55	16	4-0 14	112	160
1”	25	165	115	85	65	16	4-0 14	123	160
1 1/4”	32	178	135	100	78	18	4-ø 18	150	250
1 1/2”	40	190	145	110	85	18	4-ø 18	156	250
2”	50	216	160	125	100	20	4-ø 18	172	350
2 1/2"	65	241	180	145	12	22	8-0 18	197	350
3”	80	2836	195	160	135	22	8-ø 18	222	450
4”	100	305	230	190	160	24	8-ø 23	253	450
5”	125	381	270	220	188	28	8-ø 25	275	600
6”	150	403	300	250	218	30	8-ø 25	286	800
8”	200	502	375	320	282	38	12-ø 30	340	1200
10"	250	568	445	385	345	42	12-ø 34	470	1400
