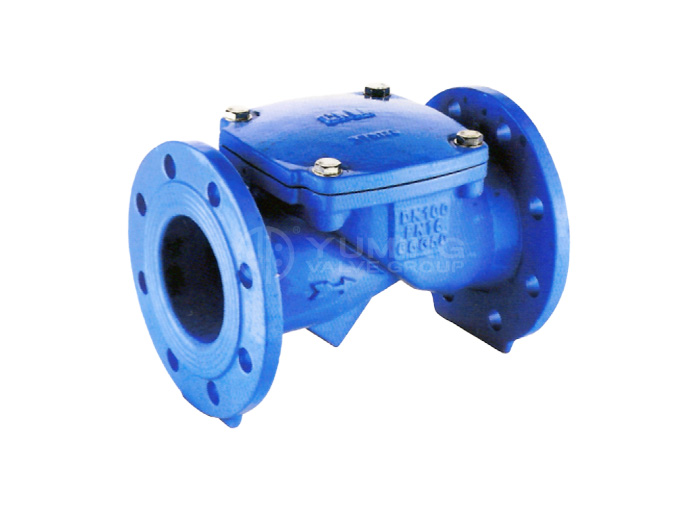

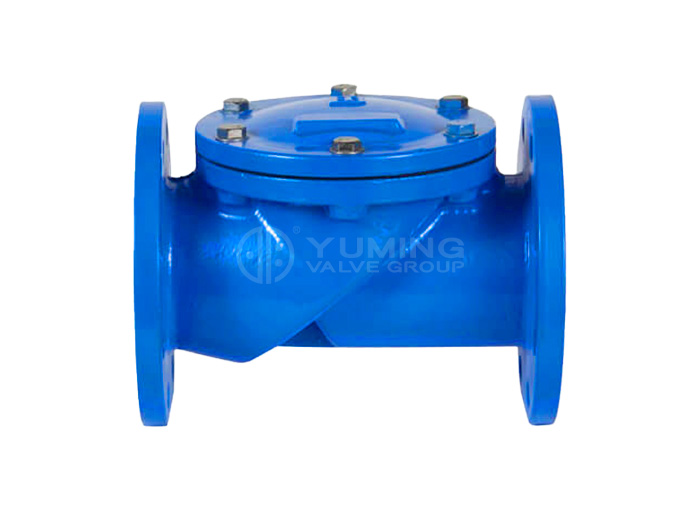

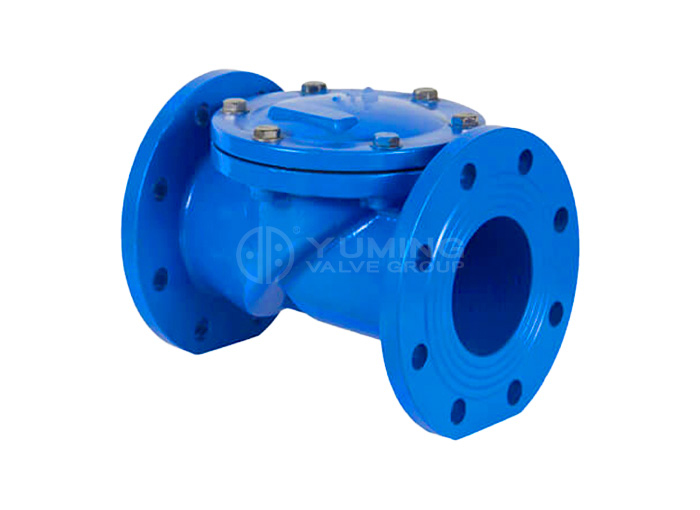

Resilient Seat Swing Check Valve
Resilient Seat Swing Check Valve
Resilient Seat Swing Check Valve

Resilient Seat Swing Check Valve

Size Range: DN50~DN600mm
Pressure: PN10-PN16,150LB,10K
Temperature: 0~80℃
Body Materials: Ductile Iron
Applicable media: Water and weakly corrosive fluids
INTRODUCTION
DATA
Related
INQUIRY
INTRODUCTION
The Swing check valve has a complete 100% flow area, low head loss and resistance to clogging. To ensure long-term reliability, because the valve’s reinforced rubber floppy disk is the only moving part, its integral O-ring provides a drop-proof seal under low and high working pressures.
The rubber flap check valve has a unique and simple design with only one moving part. The flap does not swing from the hinge pin; it just flexes open. The seat is at a 45° angle. The baffle moves 35° from opening to closing, usually before column reversal occurs. It has non-slam characteristics.

The valve does not require regular maintenance. At the same time, the combination of 45-degree seat angle, short stroke and the inherent memory of its flexible disc can provide quick closing and anti-impact operation. Recommended for water, sewage.
DATA

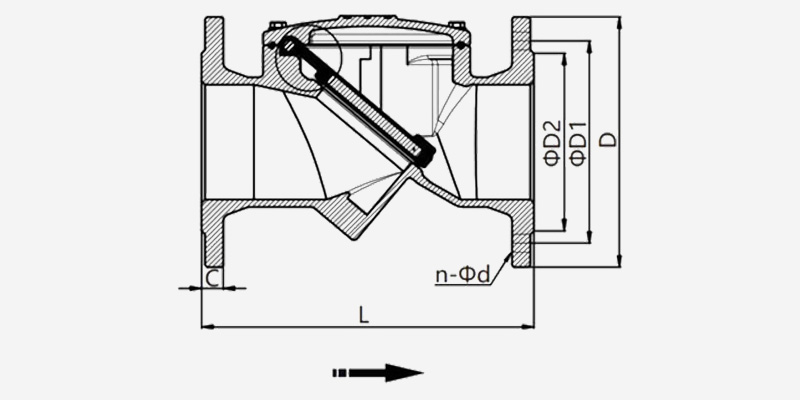

Dimension (mm)

NPS

DN

L

D

2''

50

203

165

2 1/2''

65

216

185

3''

80

241

200

4''

100

292

220

5''

125

330

250

6''

150

356

285

8''

200

795

340

10''

250

622

405

12''

300

698

460

14''

350

787

520

16''

400

914

580

18''

450

914

640

20''

500

978

705
