Introduction

product description
Wafer check valve is mainly used in industries such as fire protection, petrochemicals, textiles, papermaking, and high-rise buildings for the well of the water supply and drainage pipe network or the outlet of the water pump. It is a safety device to prevent backflow pressure and water hammer impact from the pipeline medium when the water pump stops and the water pump reverses.

Product Advantages

1、Small size, light weight, compact structure and convenient maintenance;

2、The valve plate is of dual type, which can close quickly under the elastic moment of the spring.

3、Due to the fast closing effect, it can prevent the medium from backflowing , and eliminate the strong effect of water hammer;

4、The valve body structure has small length, good rigidity, safety and reliability;

5、Surface coating: Epoxy powder coating is adopted, with strong adhesion and good weather resistance. It can be used indoors and outdoors.

6、The numerically-controlled machine tool grinds the sealing surface of the body, with good flatness and surface roughness, which can ensure the zero pressure sealing of wafer check valve.

7、The rubber and valve body are joined by vulcanization process, and the adhesive strength is higher than 1.7mpa, and it can avoid the falling off of the valve seat during use

DATA

Part material

Body Materials	DI
Disc material	DI、CF8、CF8M、CF3、CF3M
Seat Material	EPDM、NV
Shaft Material	SS420、SS304

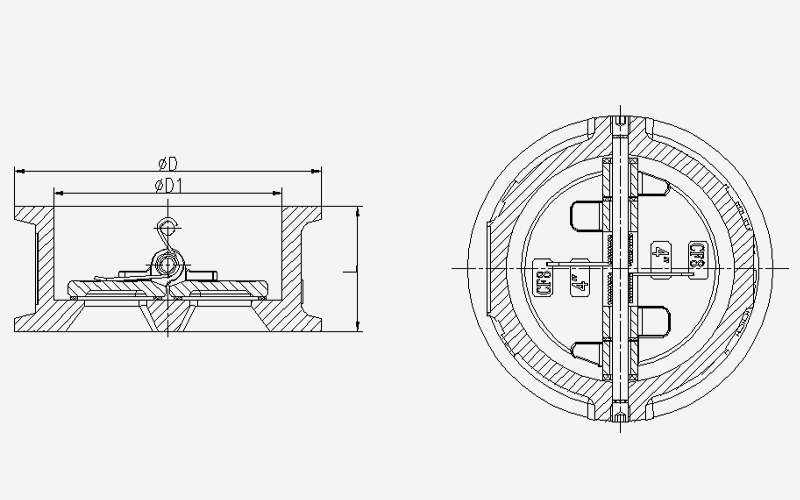

Product parameters

DN		φD	φD1	L
2″	DN50	101	65	43
2.5″	DN65	118	80	46
3″	DN80	132	94	64
4″	DN100	157	117	64
5″	DN125	186	145	70
6″	DN150	213	170	76
8″	DN200	272	224	89
10″	DN250	328	265	114
12″	DN300	378	310	114
14″	DN350	438	360	127
16″	DN400	489	410	140
18″	DN450	539	450	152
20″	DN500	594	505	152
24″	DN600	695	624	178
28″	DN700	810	720	229
32″	DN800	917	825	241
