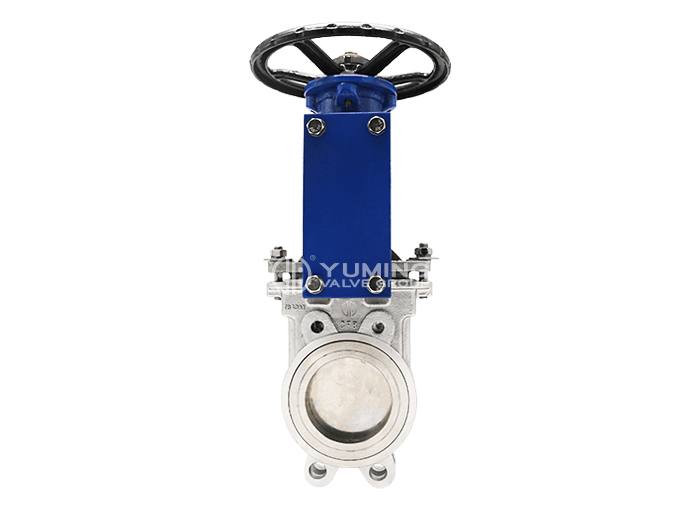

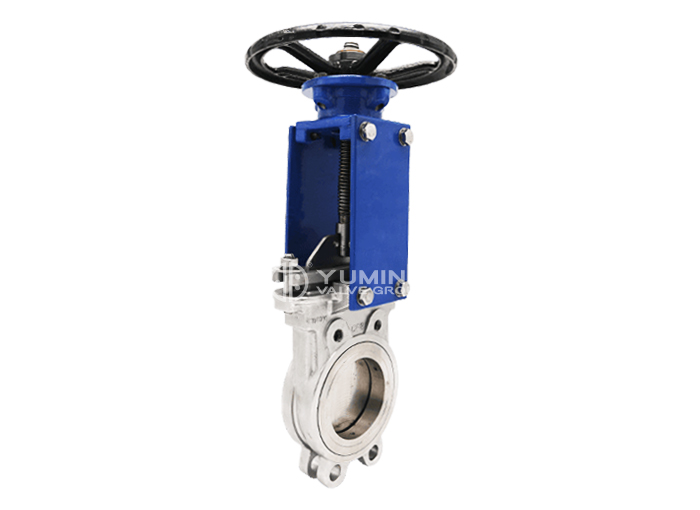

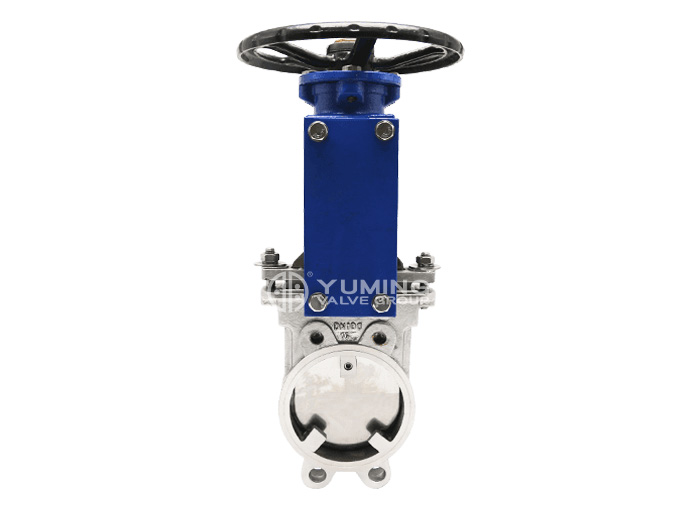

Stainless Steel Knife Gate Valve
Stainless Steel Knife Gate Valve
Stainless Steel Knife Gate Valve
Stainless Steel Knife Gate Valve

Stainless Steel Knife Gate Valve

Size 1.5’’-16’’/DN40-400
Pressure PN1.0/1.6mpa
Body Materials cast iron/ductile iron
Seat Materials NBR
Disc Materials 201stainless steel
Stem Materials 2cr13stainless steel
Introduction
DATA
Related
INQUIRY
Introduction
Features:

Medium used: Pulp, mud, sewage, powder, all kinds of liquid fluid.
Suitable temperature:below 80 degrees Celsius
Application field:Water treatment, water supply and drainage, water conservancy projects.

Product advantages:

1.Zero leakage
Unibody casting process is adopted. The inner groove of the valve body is lined with U rubber sealing strip, which is tightly sealed with the edge of the valve plate.

2.No blocking by the slag
There are no grooves at the bottom, making the flow of the fluid medium easy to plug.

3.More durable
Sealing strip design makes valve more durable.

4.Easy to install and disassemble
Small volume, smooth passage, small flow resistance, light weight, easy to install, easy to disassemble

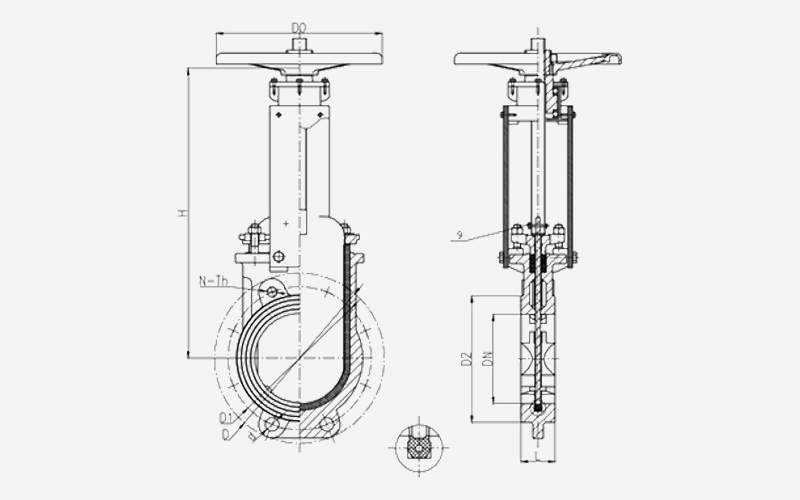

DATA
