AWWA Resilient Seated Gate Valve

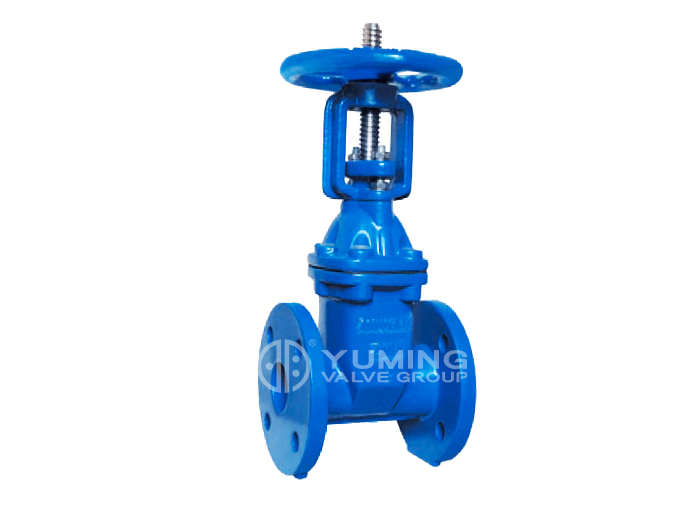

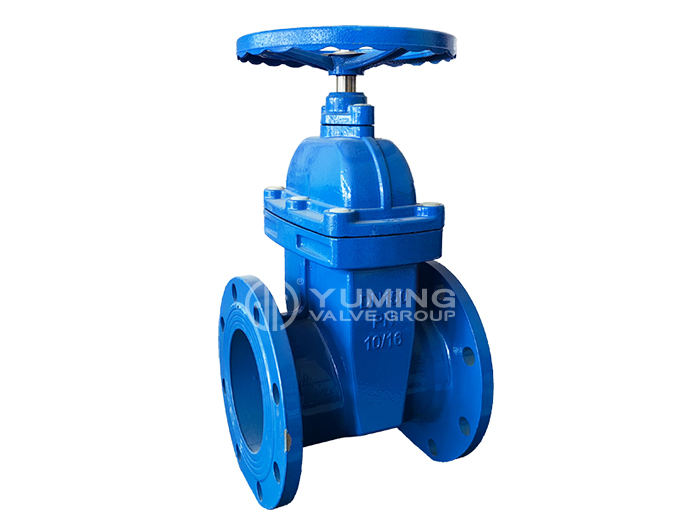

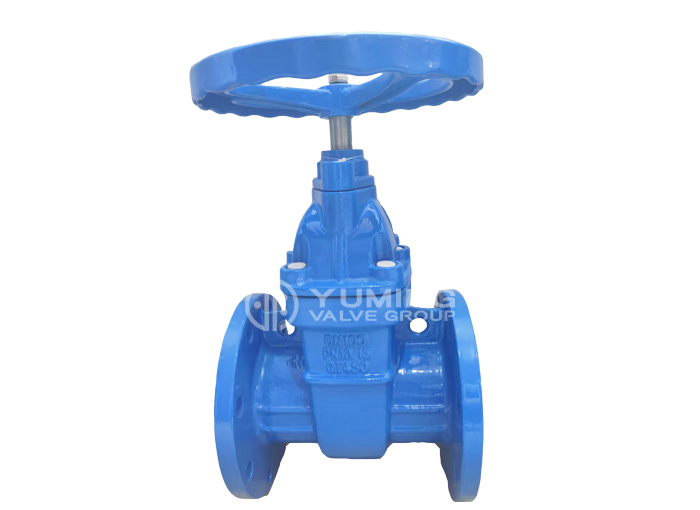

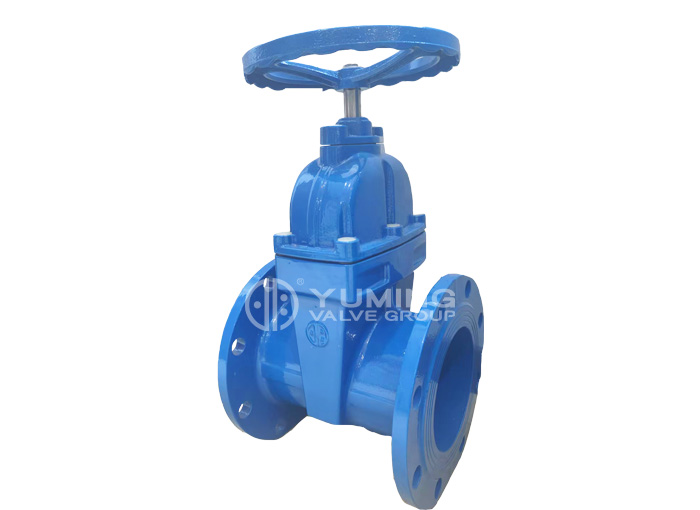

AWWA Resilient Seated Gate Valve(Rising Stem)

Body GGG50
Bonnet GGG50
Size: 2"--24"
Class: Class150
Working temperature: NBR≤80℃,EPDM≤120℃
Face to Face: ANSI B16.10
Operator: hand wheel, nut, extension stem, gear operator
Introduction
DATA
Related
INQUIRY
Introduction
DESCRIPTION
1. Design confirms to: AWWA C509/C515
2. Flanged confirms to : ANSI B16.10
3. Test & Inspection: AWWA C509/C515
4. Suitable medium: water and neutral liquid.
5.Working temperature: NBR≤80℃,EPDM≤120℃
6. Operator: hand wheel, nut, extension stem, gear operator

NO. PART MATERIAL
1 BODY :DI ASTM A536
2 WEDGE: DI A536 NBR/EPDM
3 STEM NUT: BRONZE C83600
4 STEM: 420/304
5 BONNET :DI ASTM A536
6 GLAND :DI A536/BRASS
7 HAND WHEEL: DI ASTM A536
DATA

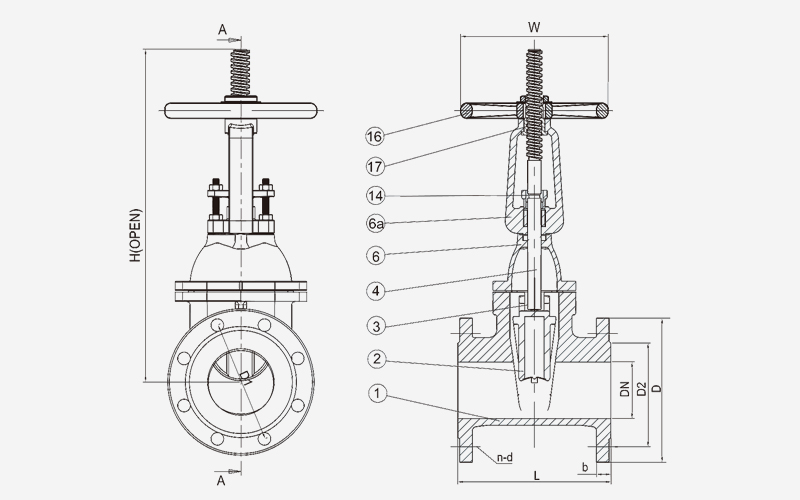

DIMENSIONS(mm)
DN L H M W D b n-d
1.5’’ 165 260 98.5 160 127 15 4-16
2’’ 178 270 120.5 180 152 16 4-19
2.5’’ 190 283 139.5 180 178 18 4-19
3’’ 203 311 152.5 200 191 19 4-19
4’’ 229 352 190.5 250 229 24 8-19
5’’ 254 435 216 280 254 24 8-22
6’’ 267 485 241.5 320 279 25.4 8-22
8’’ 292 520 298.5 350 343 28.6 8-22
10’’ 330 632 362 400 406 30.2 12-25
12’’ 356 745 432 450 483 31.8 12-25
14’’ 381 835 476 500 533 35 12-29
16’’ 406 953 539.5 550 597 36.5 16-29
18’’ 432 1050 578 600 635 40 16-32
20’’ 457 1160 635 650 699 43 20-32
24’’ 508 1395 749.5 750 813 47.7 20-35
28’’ 610
32’’ 711


MATERIAL LIST
NO. PART MATERIAL
1 BODY DI ASTM A536
2 WEDGE DI A536 NBR/EPDM
3 STEM NUT BRONZE C83600
4 STEM 420/304
5 BONNET DI ASTM A536
6 GLAND DI A536/BRASS
7 HAND WHEEL DI ASTM A536
