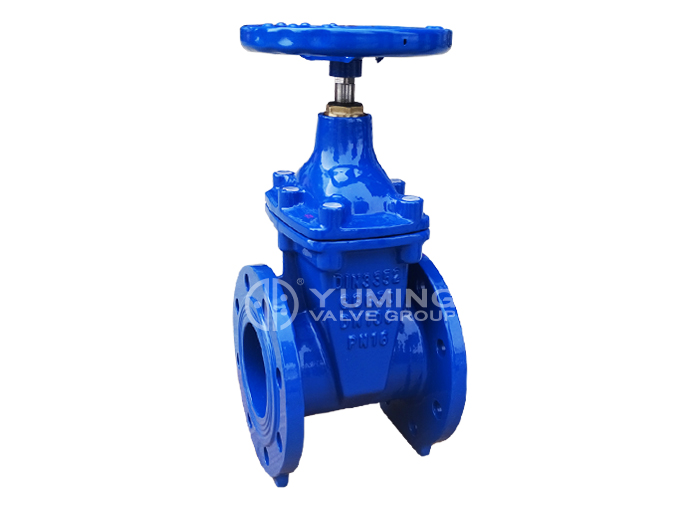

DIN 3352 F4 Resilient Seat Gate Valve

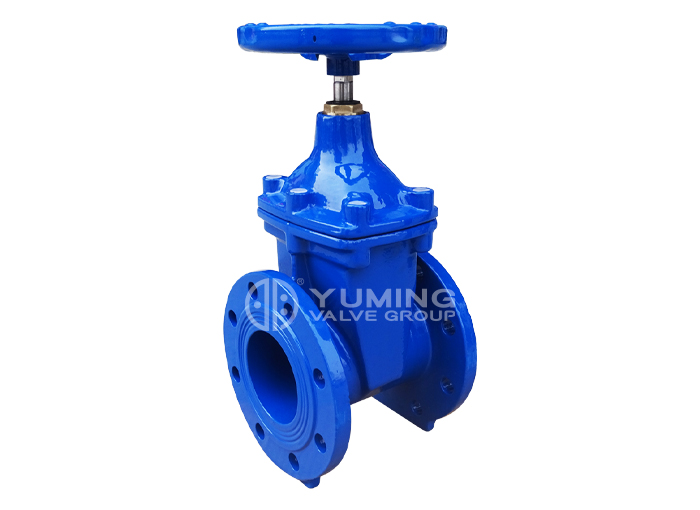

DIN 3352 F4 Resilient Seat Gate Valve

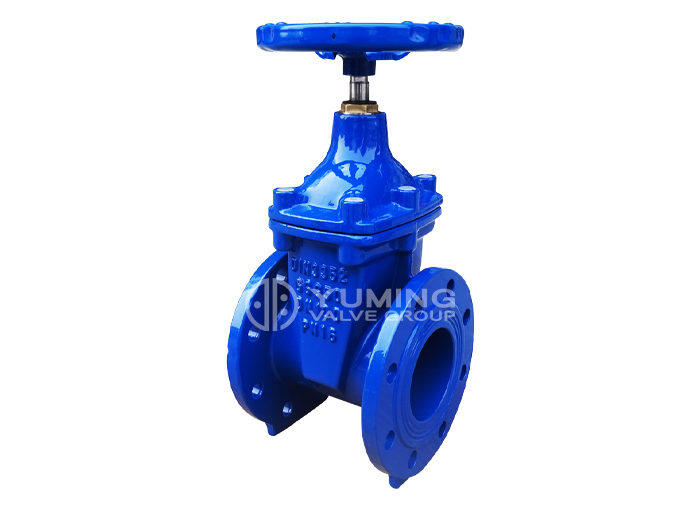

DIN 3352 F4 Resilient Seat Gate Valve

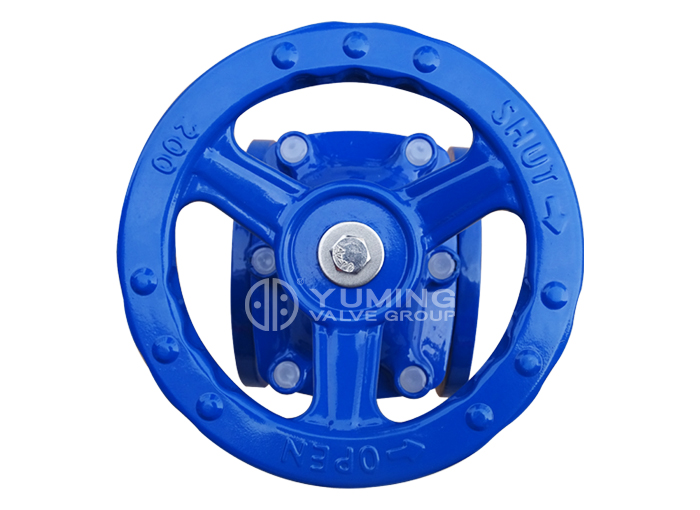

DIN 3352 F4 Resilient Seat Gate Valve

DIN 3352 F4 Resilient Seat Gate Valve

Size Range: 1 1/2"~24"(DN40-DN600mm)
Pressure: PN10-PN25
Body Materials: GGG50
Temperature: ≤80℃
Seat Materials: NBR/EPDM
Disc Materials: GGG50+NBR/EPDM
Stem Materials: 45#/2Cr13/ 304/316stainless steel
INTRODUCTION
DATA
Related
INQUIRY
INTRODUCTION
Product introduction
The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation.
Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction,petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.

Product Features
Low torque operation
Rubber encapsulated wedge
Clockwise closing direction
Fusion bonded epoxy coated inside and outside

 Product Advantages
1.The body is ductile iron,high level than national stanard.Tensile strength is 450Mpa,elongation is large than 10%,can not be broken easily when transport.
2. Both inner and out part is epoxy coating, the thickness is 250μm minimum,can prevent rust well,can be used in  sewage system.
3.The wedge is coated with EPDM, the EPDM proportion can reach 50%,steable and good resilient.
4. 3 O rings are used on 2Cr13 stem,can reduce friction,prevent leakage,can change sealing ring with stop water.
5.The stem use brass, operate easily,prevent block.
6.Every link, from workblank to the finished product packaging will be inspected strickly.
DATA
Material specification
Item Part Name Material Item Part Name Material
1 Body GGG50 6 Stem X20Cr13
2 Seat Ring EPDM/NBR 7 Bonnet Gasket EPDM
3 Wedge GGG50+EPDM/NBR 9 Bonnet GGG50
      12 Stem Sealing EPDM/NBR
5 Wedge Nut Brass 13 Gland Flange GGG50

Size L D D1 D2 b n-d H W W.T(kg)
DN40 140 150 110 84 18 4-19 230 130 11
DN50 150 165 125 99 20 4-19 250 130 12
DN65 170 185 145 118 20 4-19 280 130 16
DN80 180 200 160 132 22 8-19 310 150 19
DN100 190 220 180 156 24 8-19 349 185 26
DN125 200 250 210 184 26 8-19 395 185 36
DN150 210 285 240 211 26 8-23 456 195 51
DN200 230 340 295 266 26 8-23 537 225 62
DN250 250 395 350 319 28 12-23 659 245 127
DN300 270 445 400 370 28 12-23 718 285 165
DN350 290 505 460 429 30 16-23 870 400 225
DN400 310 565 515 480 32 16-28 941 400 369.6
DN450 330 615 565 530 32 20-28 1204 640 426.8
DN500 350 670 620 582 34 20-28 1295 640 572
DN600 390 780 725 682 36 20-31 1478 640 809.6
