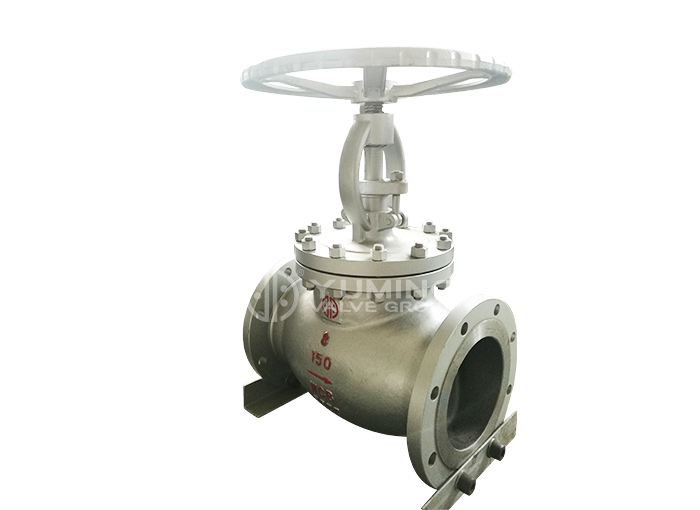

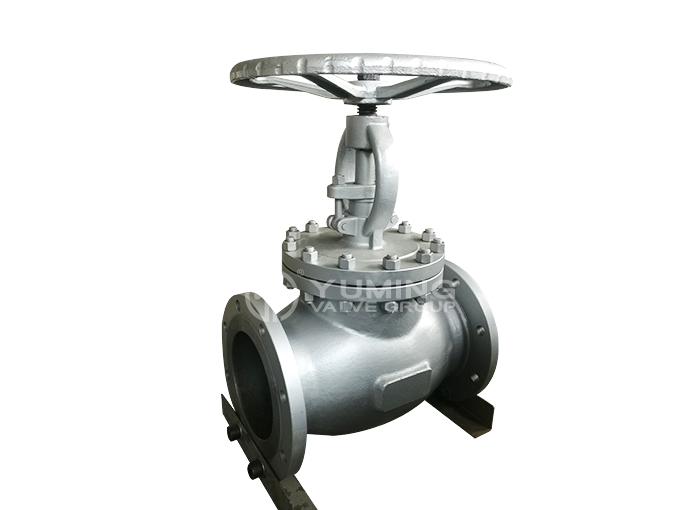

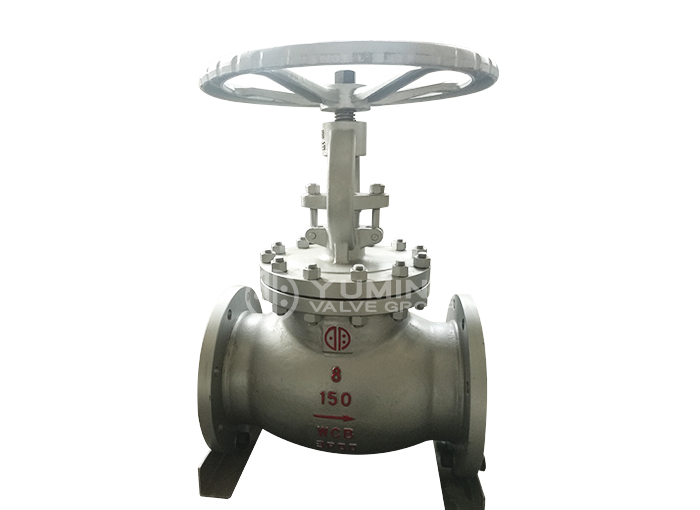

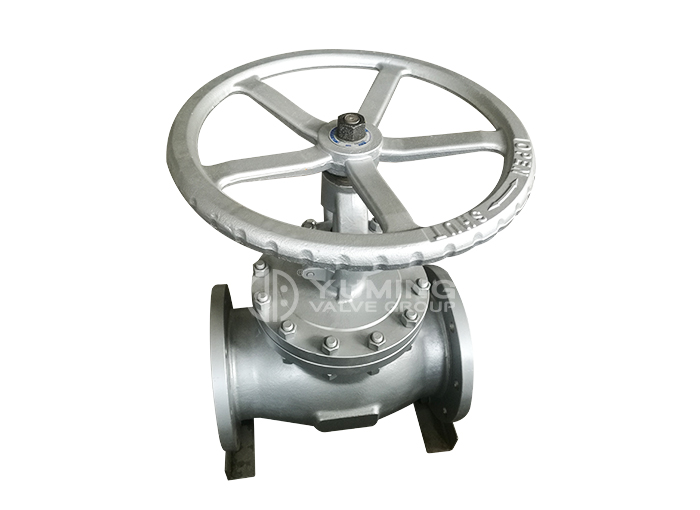

ANSI Globe valve
ANSI Globe valve
ANSI Globe valve
ANSI Globe valve
ANSI Globe valve
ANSI Globe valve
ANSI Globe valve
ANSI Globe valve

ANSI Globe valve

Size Range: 1/2”-8”
Pressure: Class150-class600
Body Materials： WCB/CF8/CF8M/SS304/SS316
Connection end: Flange
Temperature: ≤150℃
Design Standard: BS1873
Send Email
Chat Now
Get Price
INTRODUCTION
DATA
Related
INQUIRY
INTRODUCTION
Technical Requirements
  • 1.Design & manufacture conform to BS1873
  • 2.Face to Face dimension conforms to ASME B16.10
  • 3.Flange dimension conforms to ASME B16.5
  • 4.Test & Inspect conform to API 598
Product advantages
  1. Simple structures.Easier to be manufactured and repaired.
  2. Small working stroke,short opening and closing time. 　　
  3. Good sealing performance,small friction between sealing face and life long.
  4. The friction between sealing face is smaller than gate valve during the process of opening and closing.And it’s wear-resistant. 　　
  5. It usually have only one sealing face,good manufacturing process and easy to be repaired.
  6. The structure style of globe valve’s body can be divided into straight-through, three-and right-angle type.
DATA
size L D D1 D2 b n - Φd W H
1/2" 4.25 3.5 2.38 1.38 0.47 4 - 0.59 4.92 6.65
3/4" 4.61 3.86 2.76 1.69 0.47 4 - 0.59 4.92 7.08
1" 5 4.25 3.13 2 0.47 4 - 0.59 4.92 7.48
1 1/2" 6.5 5 3.88 2.87 0.56 4 - 0.62 7.09 13.66
2" 8 6 4.75 3.62 0.625 4 - 0.75 7.09 14
2 1/2" 8.5 7 5.5 4.12 69 4 - 0.75 9.45 15
3" 9.5 7.5 6 5 0.75 4 - 0.75 11.02 16.25
4" 11.5 9 7.5 6.19 0.94 8 - 0.75 11.02 19.68
6" 16 11 9.5 8.5 1 8 - 0.88 14.17 22.25
8" 19.5 13.5 11.75 10.62 1.12 8 - 0.88 450 26
