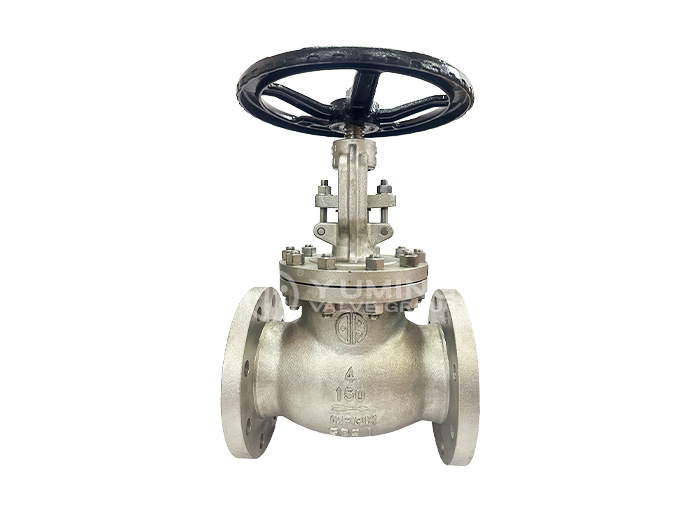

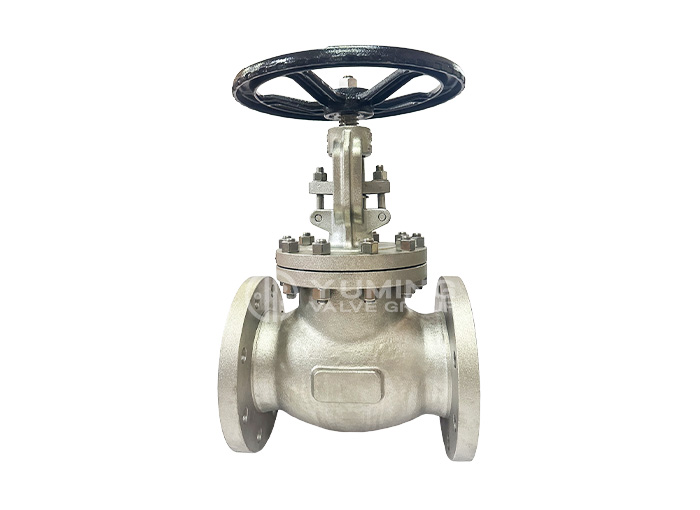

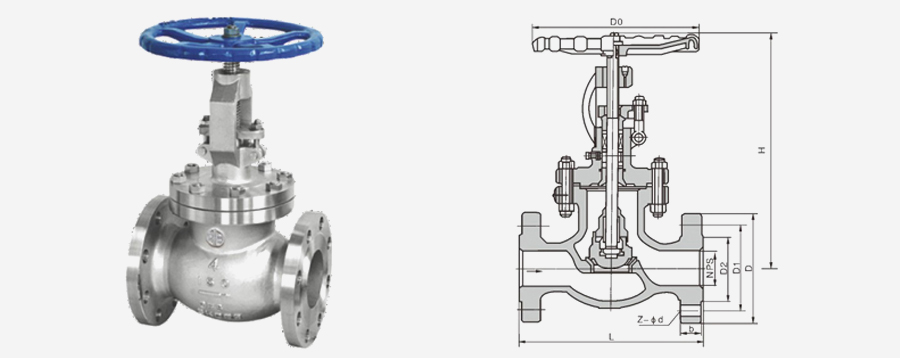

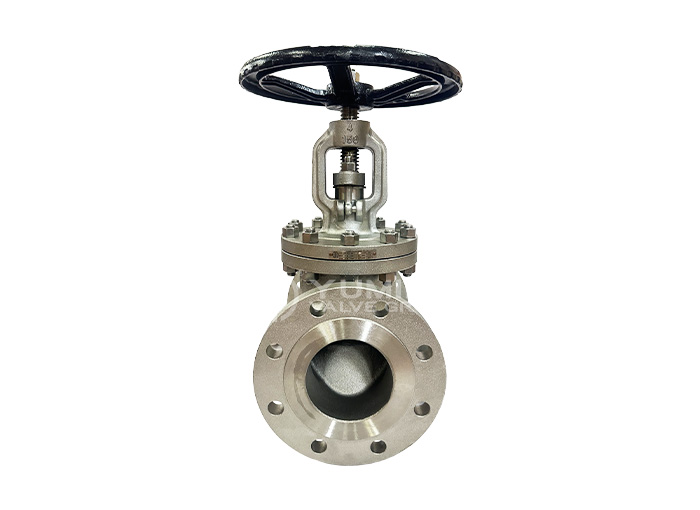

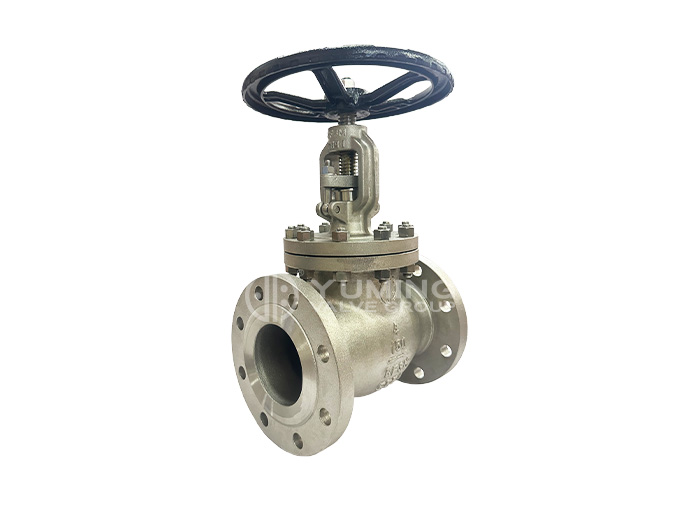

API Standard Globe Valve
API Standard Globe Valve
API Standard Globe Valve
API Standard Globe Valve

API Standard Globe Valve

Size Range : 1/2”-8”
Pressure : Class150-class600
Temperature: -29℃-425℃
Concatenon: Flange
Medium: Water,oil,steam
Body: WCB/stainless steel
Introduction
DATA
Related
INQUIRY
Introduction
Body Test: .5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.
DATA
Size Range 2~24"(DN50~DN600)
Pressure PN10, PN16, Class150
Body Materials Cast Iron, Ductile Iron
Seat Materials NBR, EPDM
Disc Materials Ductile Iron + EPDM/NBR lined
Stem Materials SS416
Disc Materials Ductile Iron + EPDM/NBR lined
Stem Materials SS416
