INTRODUCTION

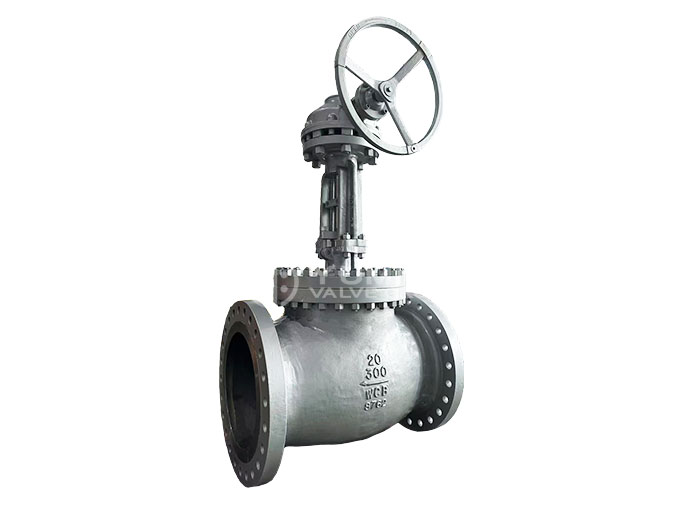

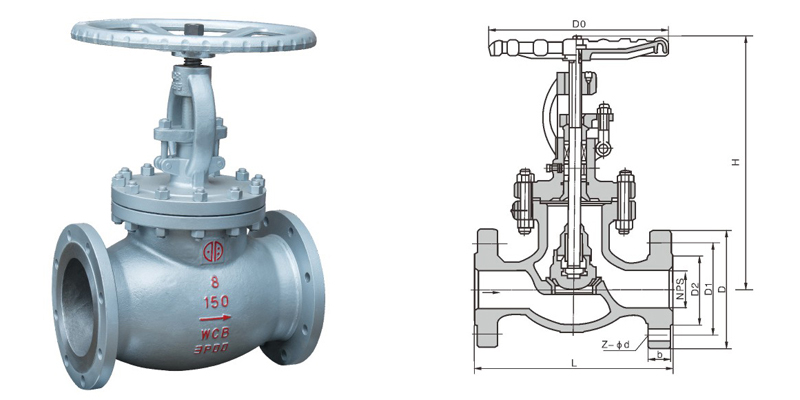

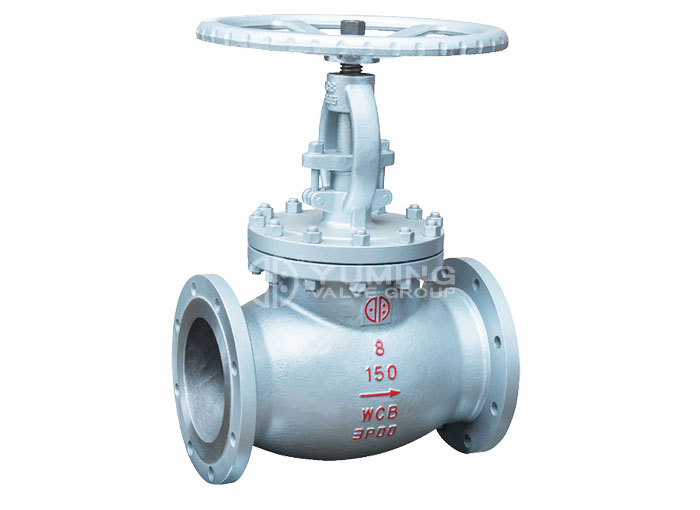

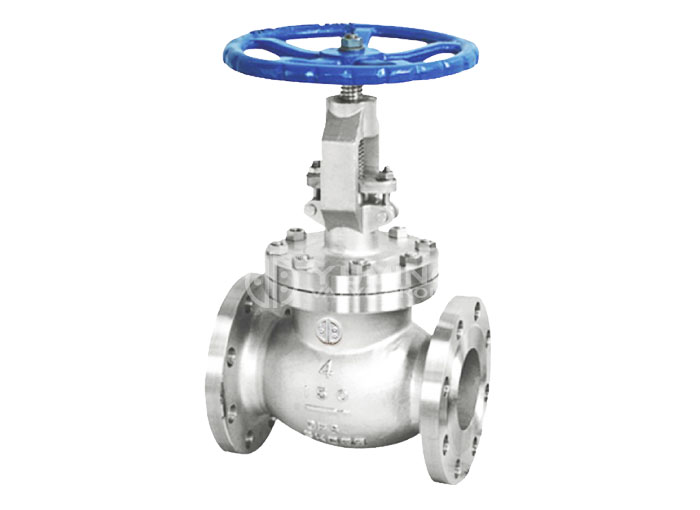

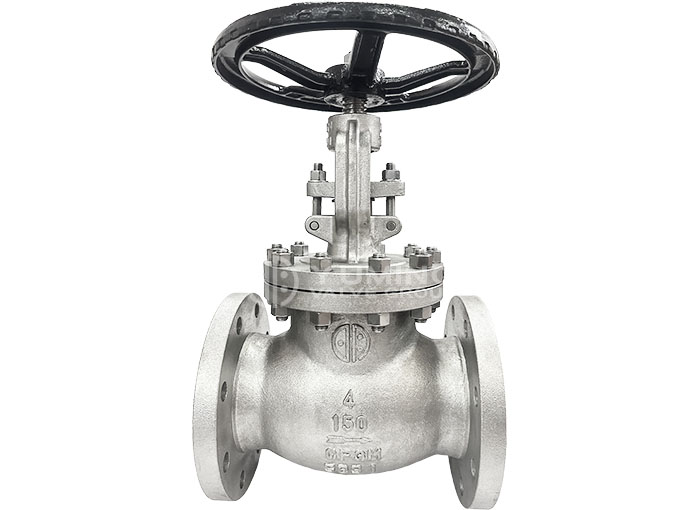

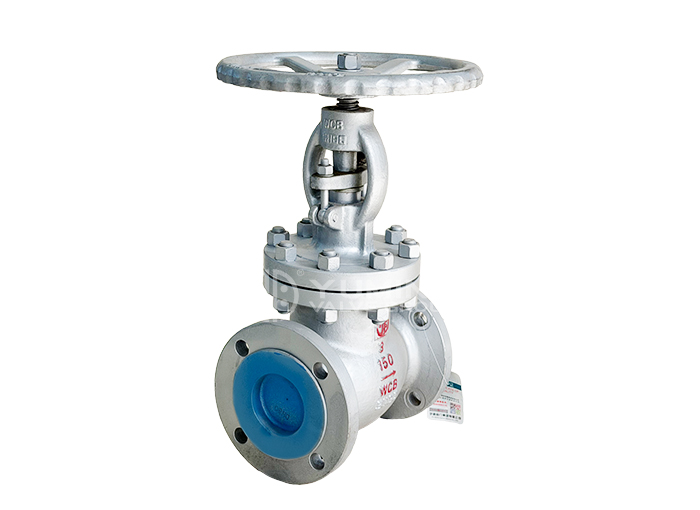

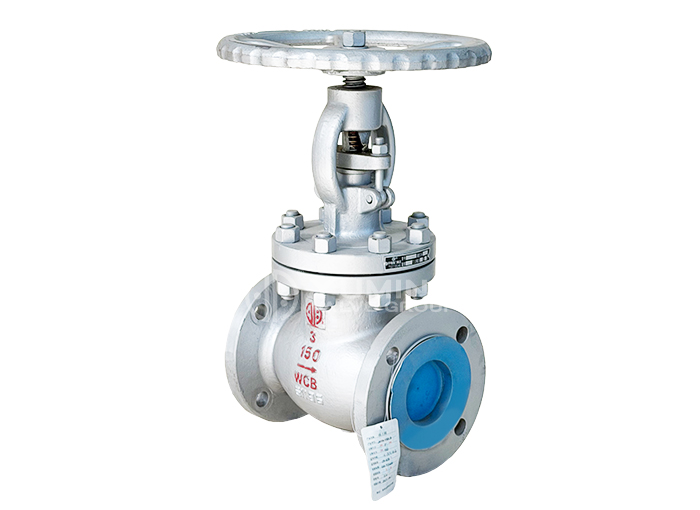

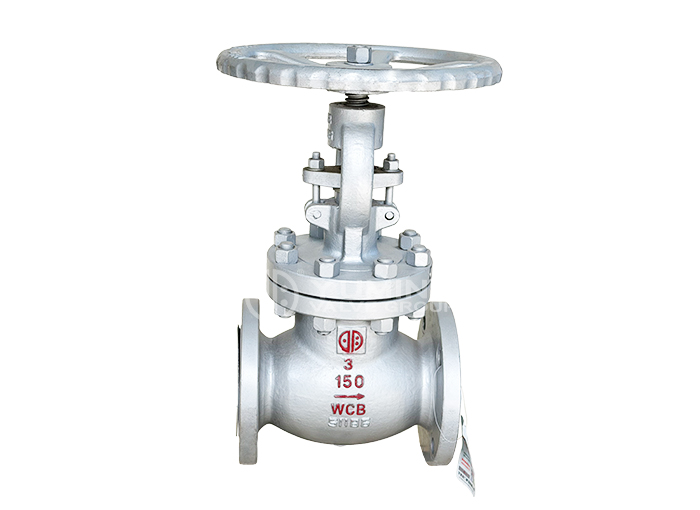

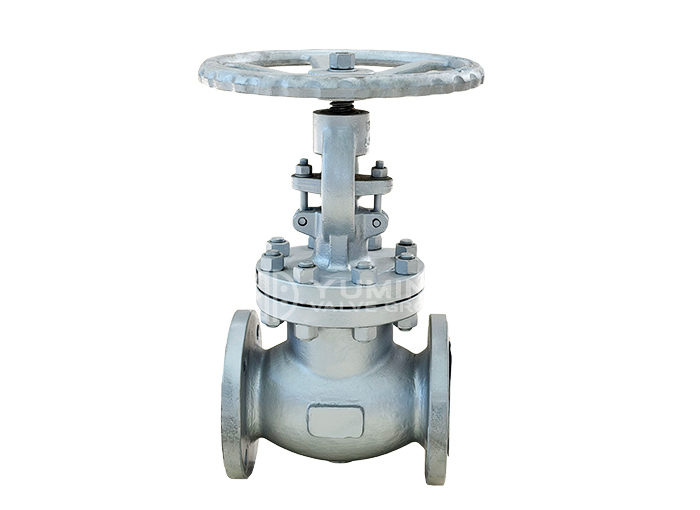

Yuming American Standard Globe Valve is a type of globe valve designed and manufactured in accordance with the standards of the American API (American Petroleum Institute), ASME (American Society of Mechanical Engineers), etc. Its core function is to achieve precise flow regulation and reliable shutoff of pipeline media. With the advantages of "linear adjustment characteristics, bidirectional sealing capabilities, and adaptability to harsh working conditions", it is widely used in petrochemical, natural gas, electric power, pharmaceuticals and other industries with high requirements for flow control accuracy and sealing reliability, especially in medium and high pressure, small and medium diameter process pipelines. It occupies an important position.
Design and Manufacturing Standards:
API 600
ASME B16.34
Construction and Dimensional Standards:
ASME B16.10
ASME B16.5
Inspection and Testing Standards:
API 598
API 607

DATA

Selection recommendations:

Class	Rated pressure（MPa，20℃）	Applicable Scenarios	Typical materials
Class 150	1.93	Civilian water supply, low-pressure steam pipelines, air conditioning systems	WCB carbon steel, ductile iron
Class 300	5.17	Medium and low pressure raw material transportation in petrochemical industry, pharmaceutical preparation	WCB carbon steel, A351 CF8 stainless steel
Class 600	10.34	High-pressure steam pipelines, feed to fractionating towers in oil refineries	WC6 chrome-molybdenum steel, A182 F316
Class 900~2500	15.51~42.03	Hydrogenation reaction unit, high-pressure natural gas metering pipeline	A182 F316L, Hastelloy C276

Application:
Petrochemical: Refinery catalytic cracking unit "Reaction feed regulating valve" (Class 600, WC6 chrome-molybdenum steel, high temperature resistance up to 400°C), fine chemical "Solvent metering pipeline valve" (Class 300, A351 CF8M stainless steel, corrosion resistant);
Power: Thermal power plant "Boiler feed water regulating valve" (Class 900, WC9 chrome-molybdenum steel, high pressure and high temperature resistance), Nuclear power plant "Coolant circulation pipeline valve" (Class 1500, A182 F316L, radiation corrosion resistant);
Pharmaceutical and food: Pharmaceutical factory "Drug liquid dispensing pipeline valve" (Class 150, 316L stainless steel + PTFE seal, easy to clean, no dead corners), Food factory "Syrup transfer regulating valve" (Class 150, Y-type structure, anti-clogging);
Urban pipeline network: Urban heating system "Residential heating inlet pressure regulating valve" (Class 150, WCB carbon steel, regulating household steam pressure).
