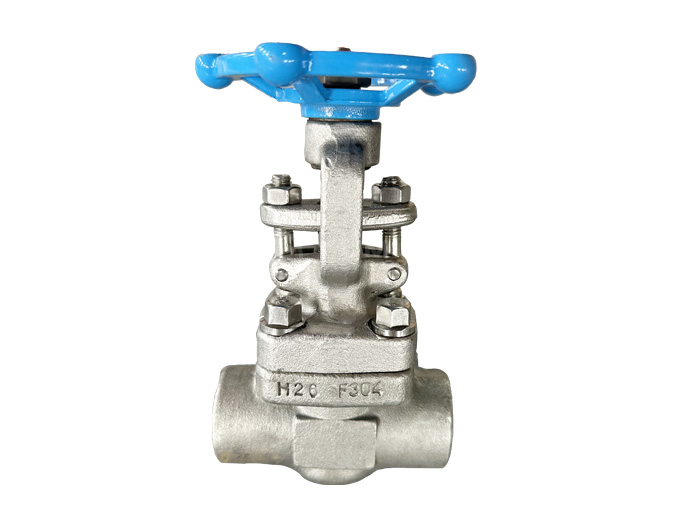

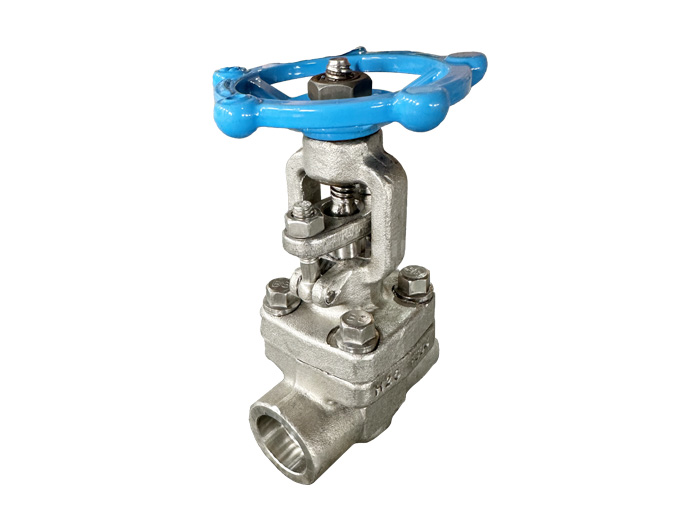

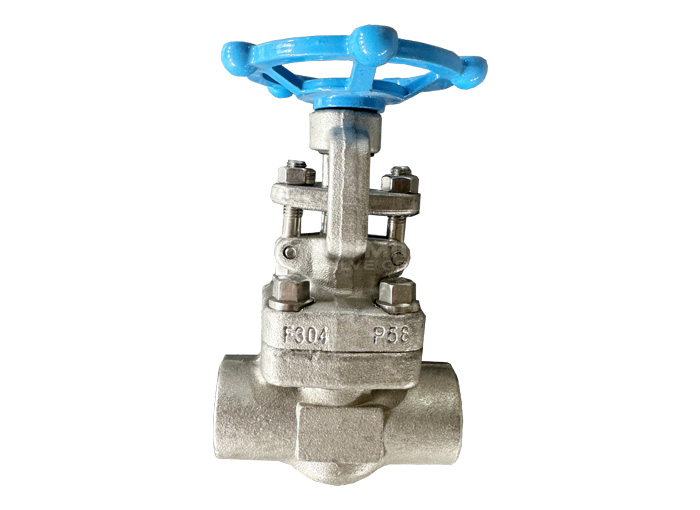

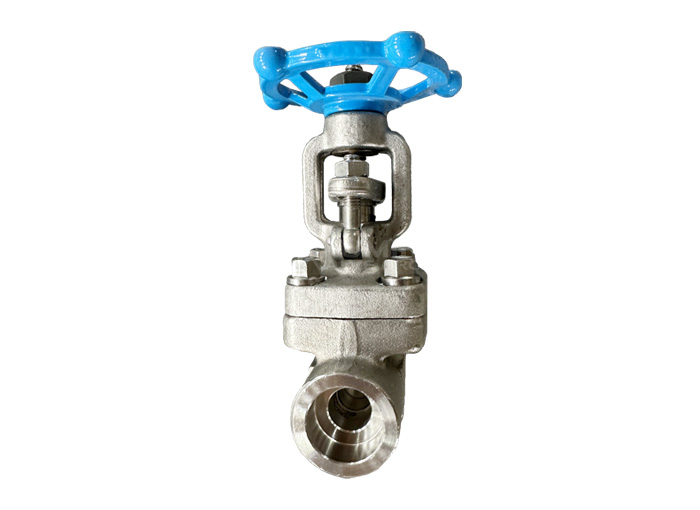

F304 socket welding gate valve api 602

Forged Steel Gate Valve
YUMING Forged Steel Gate Valve screwed and flanged ends are Bolted Bonnet, outside screw and yoke type, rising spindle & non-rising hand wheel construction, in size 1/2" (DN15) to 2" (DN50) to suit various critical, non-critical applications and pressure rating in 800 and 2500 class in Regular (Reduced) Port. Our Forge Gate Valve is available in Bolted Bonnet Design, Pressure Seal Bonnet Design, Welded Bonnet Design and Cryogenic Service.
YUMING manufactures Forged Steel Gate Valve threaded in wide range of Body Materials like ASTM A 105 -Forged Carbon Steel, ASTM A 182 F 304/304 L/ 316/ 316 L, Forged Stainless Steel 304/304 L/316/316 L, ASTM A 182 F 11/22 -Alloy Steel to suit high temperature and pressure industrial application.
For High Pressure & Temperature application Stellited F6 Face Seat & Disc available. Forged Steel Gate Valve available in Threaded End (BSP/ NPT Female), Socket Weld End, Butt Weld End, and Weld Neck End.
Design & Testing International Standard of Forged Steel Gate Valve
Design Standard:

• BS 5352/API 602/ASME B 16.34

Inspection & Testing Standard:

• BS EN ISO 12266-1(BS 6755-l)/API 598/ISO 5208

Flange To Flange Distance:

• As Per ANSI B 16.10 / BS 5352 / API 602
• Screwed-Threaded End to ANSI B 1.20.1
• Socket Weld End to ANSI B 16.11
• Flanged Ends as per ANSI B 16.5

Salient Features
Body & Bonnet made from high quality forging.
The Forgings are precision machined for high performance.
Leak Proof Body-Bonnet Joint with Spiral Wound Gasket.
Ground Finish Stem.
Self-Aligning Two-Piece Gland.
The back seating feature facilitates repacking of the stuffing box online with the valve in fully open position.
Application Industries for Forged Steel Gate Valve
Generally fine controlling of flow.
Power Plants & Process Industries.
Petrochemical Plants & Refineries.
Fertilizers Plants.
Process & General Industries.
Sugar Industries & Distillery Plants.
Water, Steam, Gas, oil, and other non-aggressive media.
Other applications on request.
