Standard Test
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function/Operation Test: At the time of final inspection,each valve and its actuator (Flow-Control Lever/ Gear/Pneumatic Actuator),under goes a complete operating test (Open/Close).This test carried out without pressure and at ambient temperature.It ensures the correct operation of the valve/actuator assembly with accessories such as solenoid valve,limit switches,air filter regulator etc.
Special Test: On request,any other test can be carried out according to special instruction by client.
Application
1.Water Treatment Plant
2.Breweries
3.Drilling Rigs
4. Heating & Air Conditioning
5.Paper Industry
6.Chemical Industry
7.Gas Plant
8.Pneumatic Conveyors
9.Sugar Industry
10.Waste Effluent Treatment Plant
11.Cooling Water Circulation
12.Compressed Air

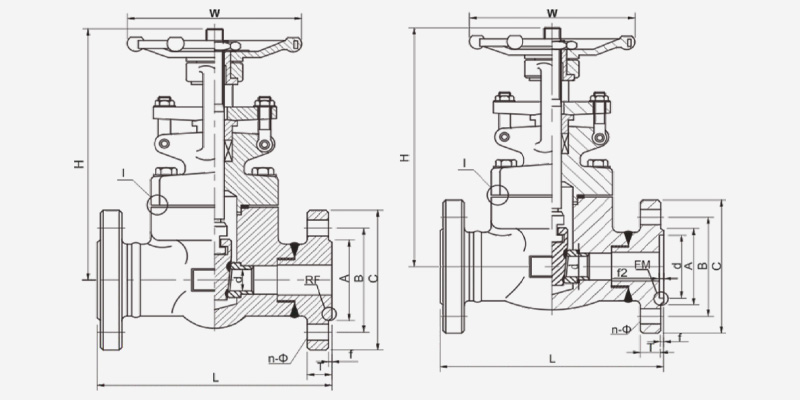

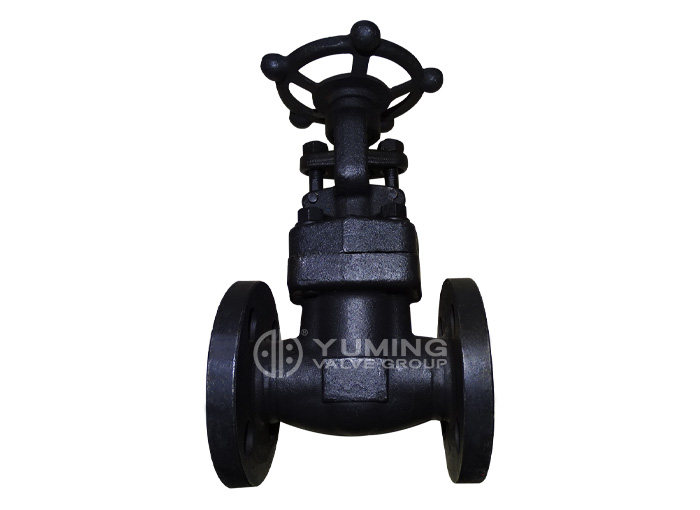

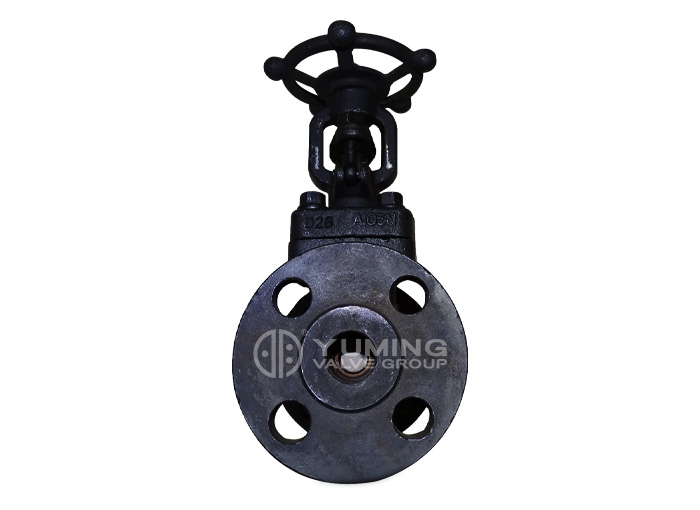

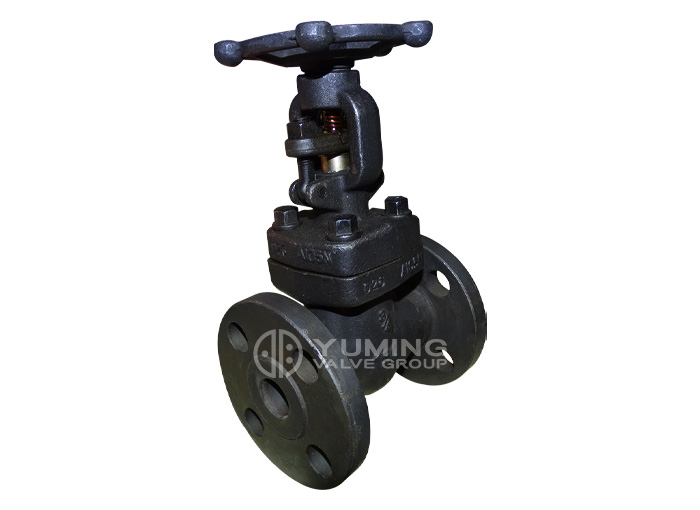

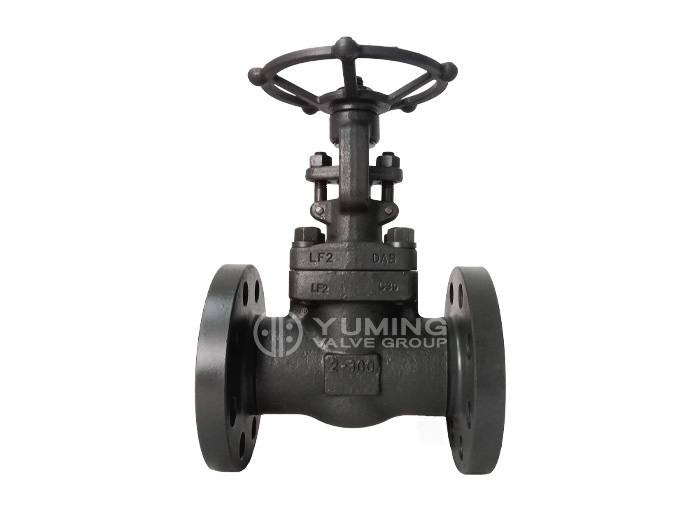

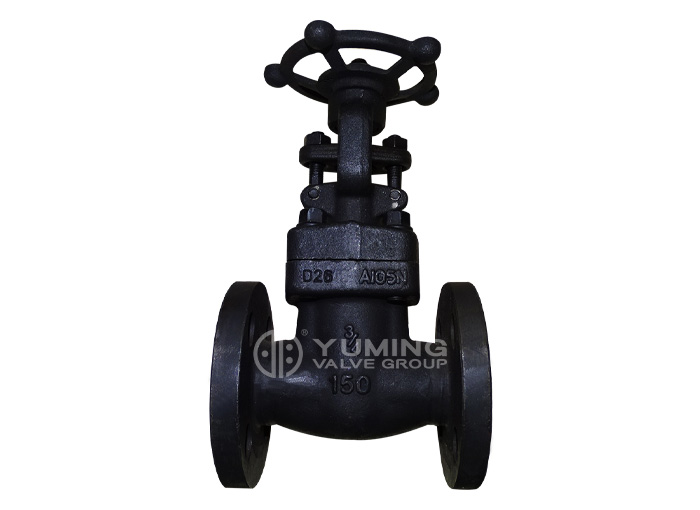

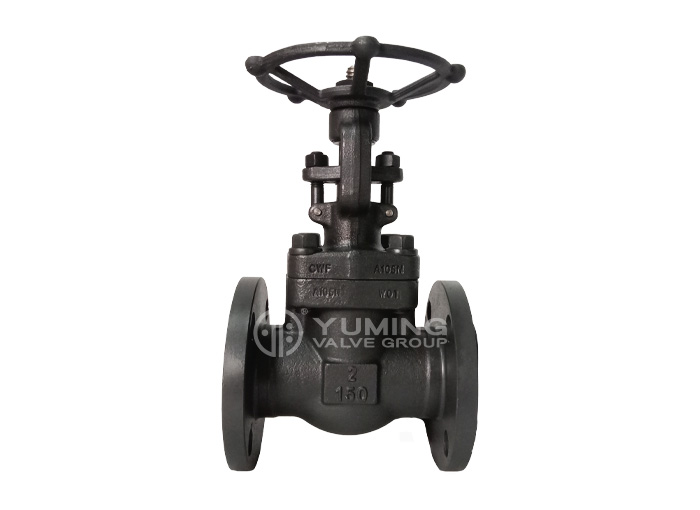

DN | d | L | H | W | A | B | C | d | f | f2 | T | N-ø |
15 | 10.5 | 130 | 155 | 100 | 45 | 65 | 95 | - | 2 | - | 16 | 4-14 |
20 | 13 | 150 | 157 | 100 | 55 | 75 | 105 | - | 2 | - | 16 | 4-14 |
25 | 17.5 | 160 | 186 | 125 | 65 | 85 | 115 | - | 2 | - | 16 | 4-14 |
32 | 23.5 | 180 | 220 | 160 | 75 | 100 | 135 | - | 2 | - | 18 | 4-18 |
40 | 28 | 200 | 246 | 160 | 85 | 110 | 145 | - | 2 | - | 18 | 4-18 |
50 | 36 | 250 | 268 | 180 | 100 | 125 | 160 | - | 2 | - | 20 | 4-18 |
DN | d | L | H | W | A | B | C | d | f | f2 | T | N-ø |
15 | 10.5 | 130 | 155 | 100 | 45 | 65 | 95 | 40 | 2 | 4 | 16 | 4-14 |
20 | 13 | 150 | 157 | 100 | 55 | 75 | 105 | 51 | 2 | 4 | 16 | 4-14 |
25 | 17.5 | 160 | 186 | 125 | 65 | 85 | 115 | 58 | 2 | 4 | 16 | 4-14 |
32 | 24 | 180 | 220 | 160 | 75 | 100 | 135 | 66 | 2 | 4 | 18 | 4-18 |
40 | 29 | 200 | 246 | 160 | 85 | 110 | 145 | 76 | 2 | 4 | 18 | 4-18 |
50 | 36.5 | 250 | 268 | 180 | 100 | 125 | 160 | 88 | 2 | 4 | 20 | 4-18 |
DN | d | L | H | W | A | B | C | d | f | f2 | T | N-Ø |
15 | 10.5 | 170 | 161 | 100 | 55 | 75 | 105 | 40 | 2 | 4 | 20 | 4-14 |
20 | 13 | 190 | 163 | 100 | 68 | 90 | 125 | 51 | 2 | 4 | 22 | 4-18 |
25 | 17.5 | 210 | 200 | 125 | 78 | 100 | 135 | 58 | 2 | 4 | 24 | 4-18 |
32 | 24 | 230 | 220 | 160 | 82 | 110 | 150 | 66 | 2 | 4 | 24 | 4-23 |
40 | 29 | 240 | 252 | 160 | 95 | 125 | 165 | 76 | 3 | 4 | 26 | 4-23 |
50 | 36.5 | 250 | 290 | 180 | 105 | 135 | 175 | 88 | 3 | 4 | 28 | 4-23 |
DN | d | L | H | W | A | B | C | d | f | f2 | T | N-Ø |
15 | 10.5 | 170 | 161 | 100 | 55 | 75 | 105 | 40 | 2 | 4 | 20 | 4-14 |
20 | 13 | 190 | 163 | 100 | 68 | 90 | 125 | 51 | 2 | 4 | 22 | 4-18 |
25 | 17.5 | 210 | 200 | 125 | 78 | 100 | 135 | 58 | 2 | 4 | 24 | 4-18 |
32 | 24 | 230 | 220 | 160 | 82 | 110 | 150 | 66 | 2 | 4 | 26 | 4-23 |
40 | 29 | 240 | 252 | 160 | 95 | 125 | 165 | 76 | 3 | 4 | 28 | 4-23 |
50 | 36.5 | 250 | 290 | 180 | 112 | 145 | 195 | 88 | 3 | 4 | 30 | 4-25 |
DN | d | L | H | W | A | B | C | d | f | f2 | T | N-Ø |
15 | 10.5 | 170 | 161 | 100 | 55 | 75 | 105 | 40 | 2 | 4 | 20 | 4-14 |
20 | 13 | 190 | 163 | 100 | 68 | 90 | 125 | 51 | 2 | 4 | 22 | 4-18 |
25 | 17.5 | 210 | 200 | 125 | 78 | 100 | 135 | 58 | 2 | 4 | 24 | 4-18 |
32 | 24 | 230 | 220 | 160 | 82 | 110 | 150 | 66 | 2 | 4 | 26 | 4-23 |
40 | 29 | 240 | 252 | 160 | 95 | 125 | 165 | 76 | 3 | 4 | 28 | 4-23 |
50 | 36.5 | 250 | 290 | 180 | 112 | 145 | 195 | 88 | 3 | 4 | 30 | 4-25 |
DN | d | L | H | W | A | B | C | d | f | f2 | T | N-Ø |
15 | 10.5 | 170 | 161 | 100 | 70 | 90 | 130 | 40 | 2 | 4 | 26 | 4-18 |
20 | 13 | 190 | 163 | 100 | 75 | 95 | 135 | 51 | 2 | 4 | 28 | 4-18 |
25 | 17.5 | 210 | 200 | 125 | 82 | 105 | 150 | 58 | 2 | 4 | 28 | 4-23 |
32 | 24 | 230 | 220 | 160 | 96 | 120 | 165 | 66 | 2 | 4 | 32 | 4-23 |
