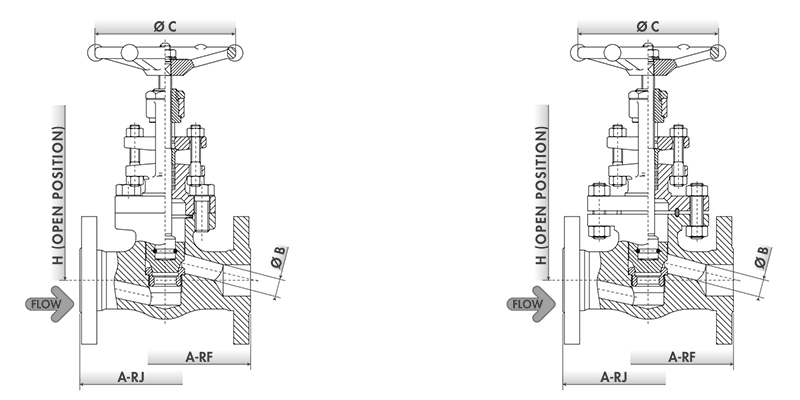

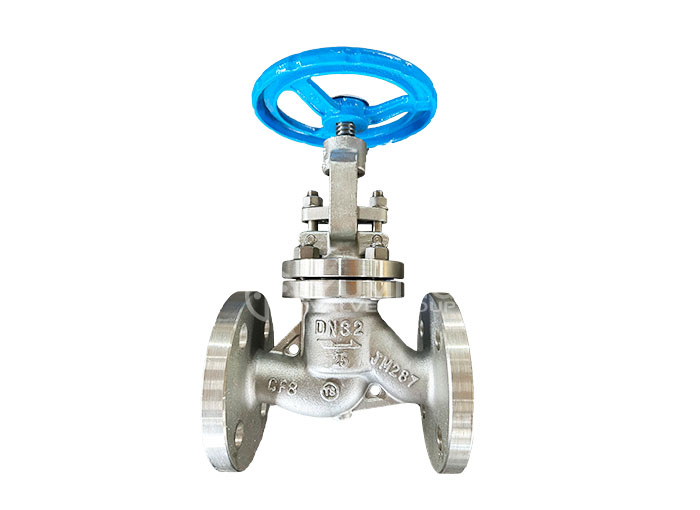

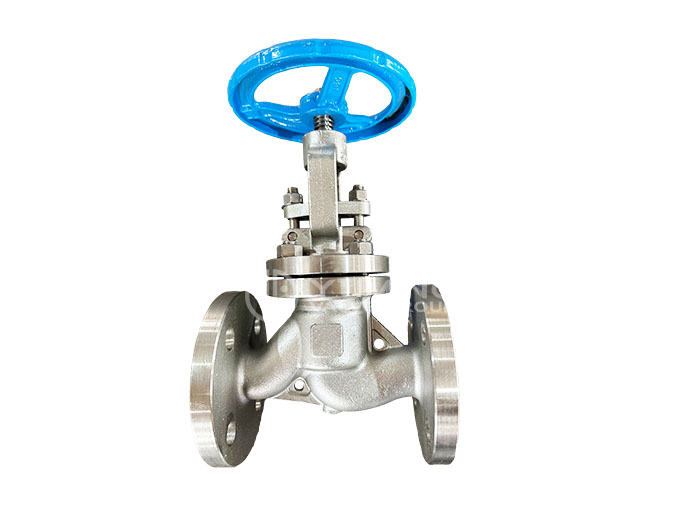

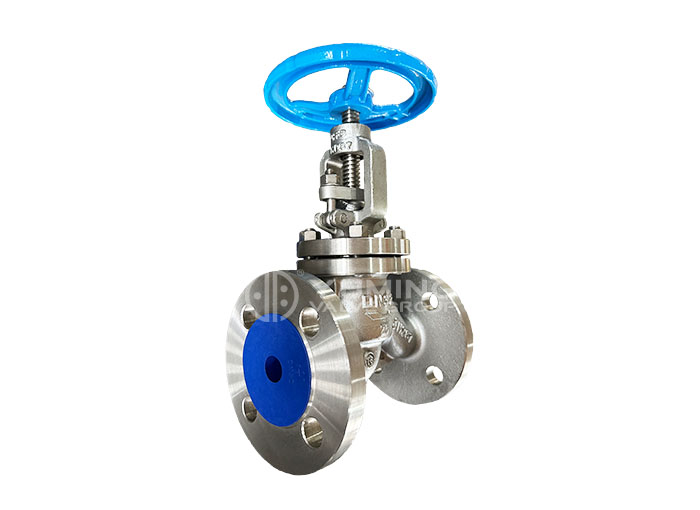

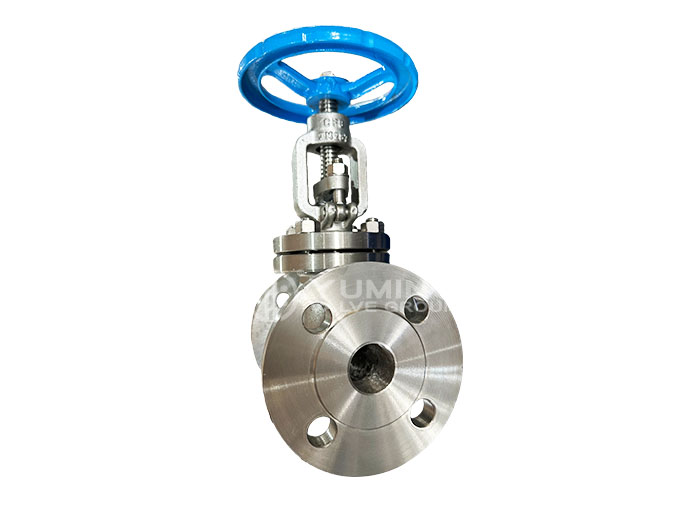

| PRESSURE | NPS | A - RF (in) | A - RJ (in) | B (in) | C (in) | H (in) | FIGURE |
| ASME 150 | 1/2" | 4.25 | N.A. | 0.39 | 3.5 | 7.7 | 1I - 303 |
| 3/4" | 4.63 | N.A. | 0.55 | 3.5 | 7.7 | 1I - 304 | |
| 1" | 5 | 5.5 | 0.66 | 3.8 | 8.9 | 1I - 305 | |
| 1 - 1/2" | 6.5 | 7 | 1.14 | 5.4 | 10.7 | 1I - 307 | |
| 2" | 7.99 | 8.49 | 1.38 | 6.8 | 11.8 | 1I - 308 | |
| ASME 300 | 1/2" | 6 | 6.44 | 0.35 | 3.5 | 7.7 | 1I3 - 303 |
| 3/4" | 7.01 | 7.51 | 0.51 | 3.5 | 8 | 1I3 - 304 | |
| 1" | 7.99 | 8.49 | 0.66 | 3.8 | 8.9 | 1I3 - 305 | |
| 1 - 1/2" | 9.02 | 9.52 | 1.14 | 5.4 | 10.6 | 1I3 - 307 | |
| 2" | 10.51 | 11.13 | 1.38 | 6.8 | 12.6 | 1I3 - 308 | |
| ASME 600 | 1/2" | 6.5 | 6.44 | 0.35 | 3.5 | 7 | 1I6 - 303 |
| 3/4" | 7.52 | 7.52 | 0.51 | 3.5 | 8 | 1I6 - 304 | |
| 1" | 8.5 | 8.5 | 0.66 | 3.8 | 9.2 | 1I6 - 305 | |
| 1 - 1/2" | 9.49 | 9.49 | 1.14 | 5.4 | 10.6 | 1I6 - 307 | |
| 2" | 11.5 | 11.62 | 1.38 | 6.8 | 12.6 | 1I6 - 308 | |
| ASME 1500 | 1/2" | 8.5 | 8.5 | 0.35 | 3.5 | 7.5 | 15FI 303 |
| 3/4" | 9.02 | 9.02 | 0.55 | 3.8 | 9.1 | 15FI 304 | |
| 1" | 10 | 10 | 0.55 | 5.4 | 10.6 | 15FI 305 | |
| 1 - 1/2" | 12.01 | 12.01 | 1.02 | 6.8 | 12.4 | 15FI 307 | |
| 2" | 14.49 | 14.61 | 1.34 | 6.8 | 14 | 15FI 308 | |
| ASME 1500 | 1/2" | 8.5 | 8.5 | 0.47 | 3.8 | 9.4 | 15F 303 |
| 3/4" | 9.02 | 9.02 | 0.57 | 5.4 | 11 | 15F 304 | |
| 1" | 10 | 10 | 0.75 | 6.8 | 11.6 | 15F 305 | |
| 1 - 1/2" | 12.01 | 12.01 | 1.22 | 6.8 | 14.6 | 15F 307 | |
| 2" | 14.49 | 14.61 | 1.5 | 9.2 | 18.3 | 15F 308 | |
| ASME 2500 | 1/2" | 10.39 | 10.39 | 0.43 | 5.4 | 12.2 | 25RF 303 |
| 3/4" | 10.75 | 10.75 | 0.57 | 5.4 | 12.4 | 25RF 304 | |
| 1" | 12.13 | 12.13 | 0.75 | 6.8 | 13.8 | 25RF 305 | |
| 1 - 1/2" | 15.12 | 15.24 | 1.1 | 9.2 | 17.7 | 25RF 307 | |
| 2" | 17.76 | 17.88 | 1.5 | 12.6 | 18.1 | 25RF 308 |
