Ball Valve Sealing Principle: Soft Seal vs Hard Seal – How to Choose by Media & Condition

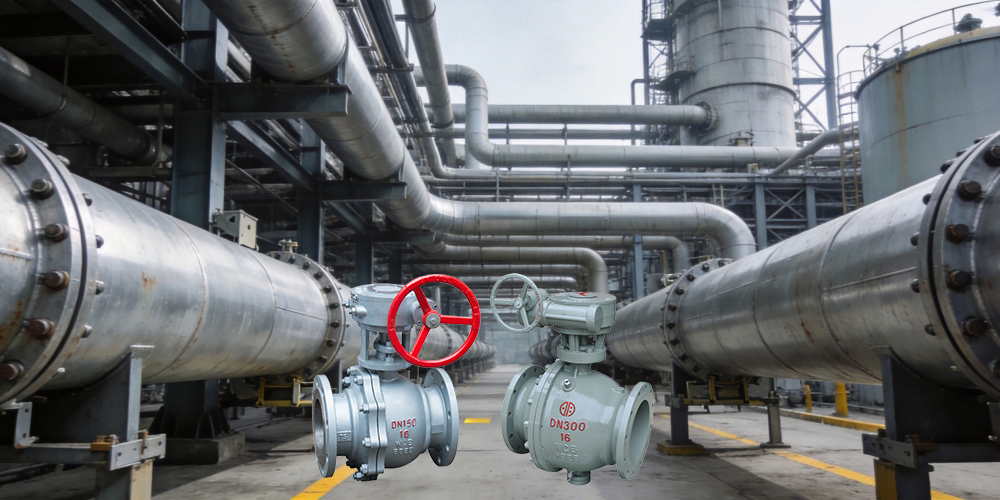

In industrial pipeline systems, ball valves are widely used in petroleum, chemical industry, electric power, natural gas, metallurgy, water treatment and other industries due to their fast opening and closing, good sealing and small flow resistance. However, during actual selection, the difference between soft-sealed ball valves and hard-sealed ball valves is one of the most concerning issues for purchasing and technical personnel.

This article combines practical applications to explain the sealing principle, structural characteristics, applicable media and selection suggestions of ball valves to help you accurately select valves according to working conditions.

1. Sealing Principle of Ball Valve

Ball valve is mainly composed of valve body, ball, valve stem and sealing seat. The core working logic is very simple: the ball rotates 90°, the medium is switched on and off through the through hole on the ball, and the ball and the valve seat contact to form a seal to prevent medium leakage.

Whether the sealing is good or not depends on these 5 points:
·Ball machining precision
·Valve seat sealing material
·Preload design
·Valve body structural stability
·Operating temperature and pressure

According to the sealing material, there are two types of ball valves:
·Soft sealing ball valves
·Hard sealing ball valves

The two are very different in terms of applicable working conditions, temperature resistance, and service life.

2. Features and Applicable Media of Soft Sealing Ball Valve

The seat sealing ring of soft sealing ball valves is commonly made of non-metallic materials such as PTFE (polytetrafluoroethylene), RPTFE, and PPL.

(1) Core Advantages for Soft Sealing Ball Valves

·Excellent sealing performance: The soft material is elastic and can fit closely with the ball, easily achieving "zero leakage".

·Effortless opening and closing: small friction coefficient, easy opening and closing, suitable for frequent operation scenarios.

·High cost performance: low manufacturing difficulty, moderate cost, and can meet most common industrial scenarios.

(2) Suitable Media for Soft Sealing Ball Valves

Soft Sealing ball valves are suitable for:
·Water
·Air
·Steam (low temperature and low pressure)
·Natural Gas
·Oils
·Weakly corrosive media

Widely used in:
·Water supply and drainage systems
·HVAC systems
·Food industry
·Pharmaceutical industry
·General chemical pipelines

(3) Obvious shortcomings for Soft Sealing Ball Valves

While offering good sealing performance, soft sealing materials have limited high-temperature resistance.

Conventional PTFE seals are generally suitable for:
·Temperature: ≤180℃
·Pressure: Medium and low pressure conditions

If the medium contains:
·Solid particles
·High-temperature medium
·High-wear fluid

This can easily lead to valve seat wear, aging, or even failure.

3. Hard Sealing Ball Valves: structural characteristics and applicable working conditions

The hard-sealed ball valve is a metal-to-metal seal. The surface of the ball and valve seat will be hardened (such as spray welding tungsten carbide, Stellite alloy, cladding nickel-based alloy), and the wear resistance and high temperature resistance are greatly improved.

(1) Core Advantages of Hard Sealing Ball Valves:

·High Temperature Resistance: Suitable for harsh conditions such as high-temperature steam and high-temperature oil.

·Wear resistance: When the medium contains particles, dust, and impurities, the seal remains stable.

·Long life: In high-frequency and high-pressure differential scenarios, it is much more durable than soft seals.

(2) Hard sealing ball valves are suitable for the following media

Hard sealing ball valves are commonly used for:
·High-temperature steam
·Heat transfer oil
·Coal chemical media
·Dust media
·Particulate fluids
·High-pressure natural gas
·Petrochemical media

Typical application industries include:
·Thermal power generation
·Oil refining
·Metallurgical industry
·Coal chemical industry
·Long-distance pipelines

(3) Disadvantages of Hard Sealing Ball Valves

Compared to soft-seal ball valves, their main disadvantages include:
·High manufacturing cost
·High machining precision requirements
·Large opening and closing torque
·Stricter sealing requirements under low-pressure conditions

Therefore, hard sealing structures are not suitable for all operating conditions.

4. Soft sealing VS Hard sealing: how to choose?

When selecting a valve, the following factors should be considered:


Selection factors	Soft sealing ball valve	Hard sealing ball valve
Sealing performance	Easier to achieve zero leakage	More stable at high temperatures
Temperature resistance	Lower	Higher performance
Abrasion resistance	General	Stronger performance
Applicable media	Clean media	High temperature, particulate media
Service life	Good under normal operating conditions	Longer operating time under harsh conditions
Cost	Lower	Higher performance

If the operating conditions are:

·Ambient temperature and pressure
·Clean medium
·High leakage control requirements

Soft-seal ball valves are usually the preferred choice.

If the following factors are present:

·High temperature
·High pressure
·Particle abrasion
·High frequency switching

In this case, a hard-seal ball valve is recommended.

5. Issues Easily Overlooked in Ball Valve Selection

Many users only focus on the diameter and pressure rating when purchasing ball valves, neglecting the following key factors:

(1) Medium Composition: Whether the medium contains particles or is corrosive directly affects the seal life.

(2) Actual Operating Temperature: Some operating conditions involve instantaneous high temperatures, which can easily lead to aging of soft sealing materials.

(3) Opening and Closing Frequency: Frequent switching will increase the wear of the valve seat, and high-frequency working conditions give priority to hard sealing.

(4) Installation Environment: High temperature and strong vibration environment, which requires higher structural stability of the valve body.

Therefore, it is recommended to provide sufficient operating parameters before selecting a ball valve to ensure long-term stable operation.

6. Conclusion

The sealing performance of ball valves directly affects the safety and operating efficiency of the pipeline system. There is no absolute quality between soft seal and hard seal. Matching the working conditions is the key.

For ordinary clean media, choose soft sealing, which is economical and well-sealed; for complex working conditions with high temperature, high pressure, and particles, choose hard sealing, which is reliable and durable.

As a professional industrial valve manufacturer, we can provide ball valve products with various structural forms and customized solutions to meet different operating requirements, helping customers achieve safer and more stable fluid control.
