ANSI Globe Valve-yuming valve

INTRODUCTION

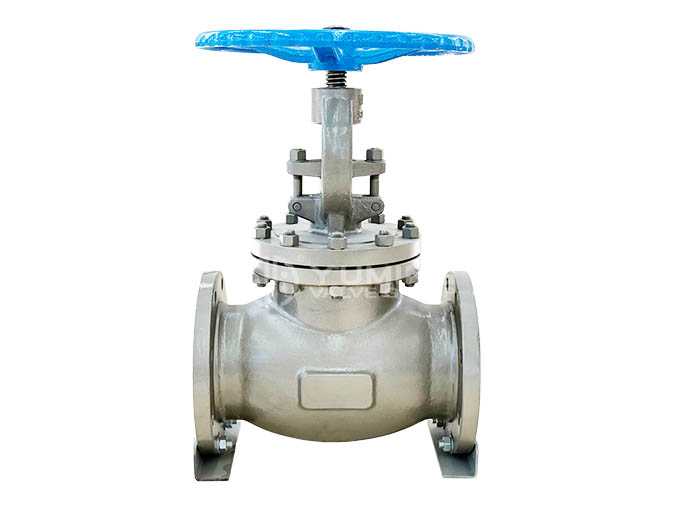

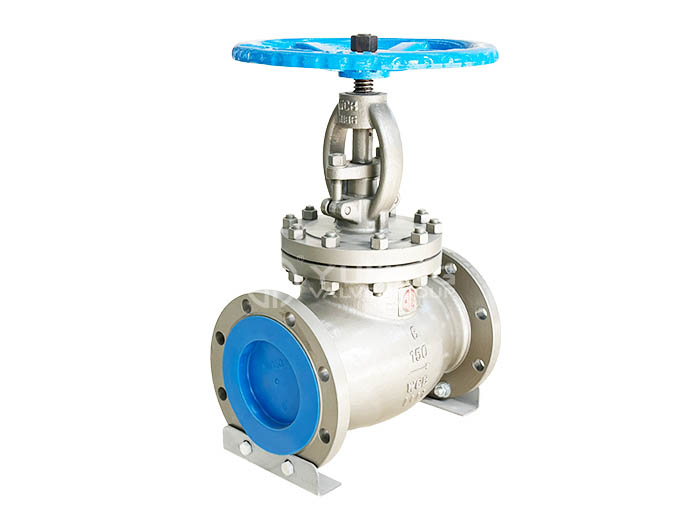

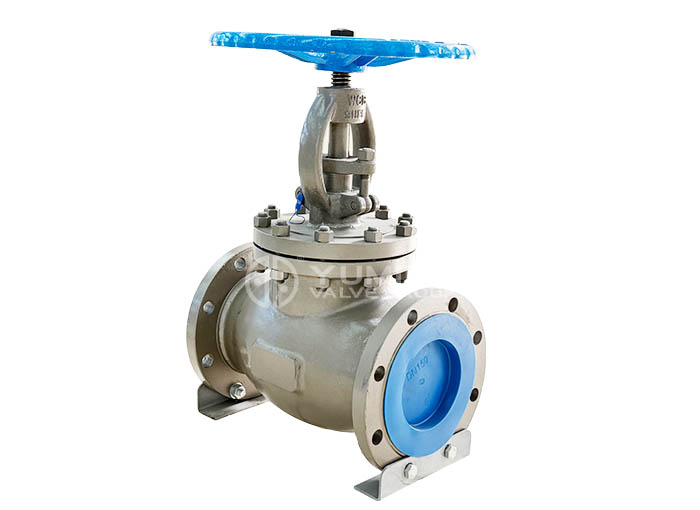

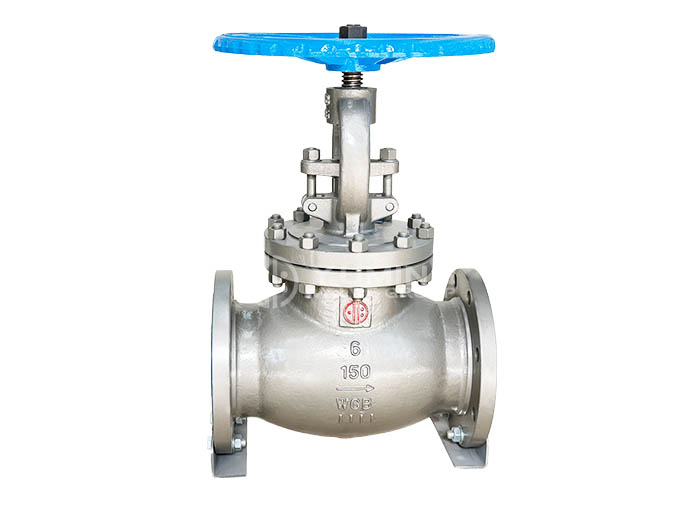

Yuming American Standard Globe Valve is a type of globe valve designed and manufactured in accordance with the standards of the American API (American Petroleum Institute), ASME (American Society of Mechanical Engineers), etc. Its core function is to achieve precise flow regulation and reliable shutoff of pipeline media. With the advantages of "linear adjustment characteristics, bidirectional sealing capabilities, and adaptability to harsh working conditions", it is widely used in petrochemical, natural gas, electric power, pharmaceuticals and other industries with high requirements for flow control accuracy and sealing reliability, especially in medium and high pressure, small and medium diameter process pipelines. It occupies an important position.

DATA

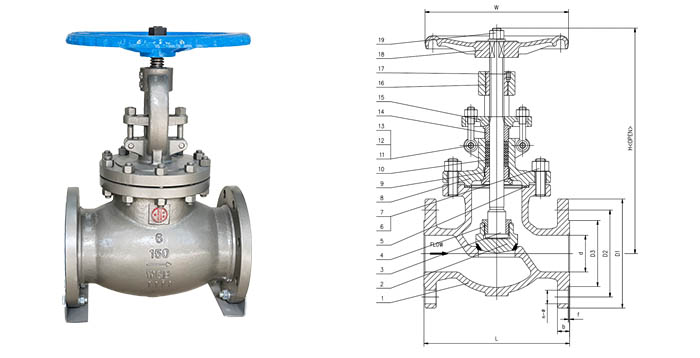

19	Lock Nut	ASTM A194 2H
18	HandWheel	Ductile Iron
17	Grup Screw	Carbon Steel
16	Stem Nut	Bronze
15	Gland Fland	ASTM A216 WCB
14	Gland	ASTM A182 F6a
13	Pin	AISI 1035
12	Gland Nut	ASTM A194 2H
11	Gland eye bolt	ASTM A193 B7
10	Packing	Flexible Graphite
9	Backseat bushing	ASTM A182 F6a
8	Bonnet	ASTM A216 WCB
7	Nut	ASTM A194 2H
6	Bolt	ASTM A193 B7
5	Gasket	SS304+Flexible Graphite
4	Disc Bonnet	AISI 1035
3	Stem	ASTM A182 F6a
2	Disc	SS304
1	Body	ASTM A216 WCB+13Cr
NO.	Parts Name	Material

Technical Requirements

Design & manufacture conform to BS1873
Face to Face dimension conforms to ASME B16.10
Flange dimension conforms to ASME B16.5
Test & Inspect conform to API 598

Application:
Petrochemical: Refinery catalytic cracking unit "Reaction feed regulating valve" (Class 600, WC6 chrome-molybdenum steel, high temperature resistance up to 400°C), fine chemical "Solvent metering pipeline valve" (Class 300, A351 CF8M stainless steel, corrosion resistant);
Power: Thermal power plant "Boiler feed water regulating valve" (Class 900, WC9 chrome-molybdenum steel, high pressure and high temperature resistance), Nuclear power plant "Coolant circulation pipeline valve" (Class 1500, A182 F316L, radiation corrosion resistant);
Pharmaceutical and food: Pharmaceutical factory "Drug liquid dispensing pipeline valve" (Class 150, 316L stainless steel + PTFE seal, easy to clean, no dead corners), Food factory "Syrup transfer regulating valve" (Class 150, Y-type structure, anti-clogging);
Urban pipeline network: Urban heating system "Residential heating inlet pressure regulating valve" (Class 150, WCB carbon steel, regulating household steam pressure).
