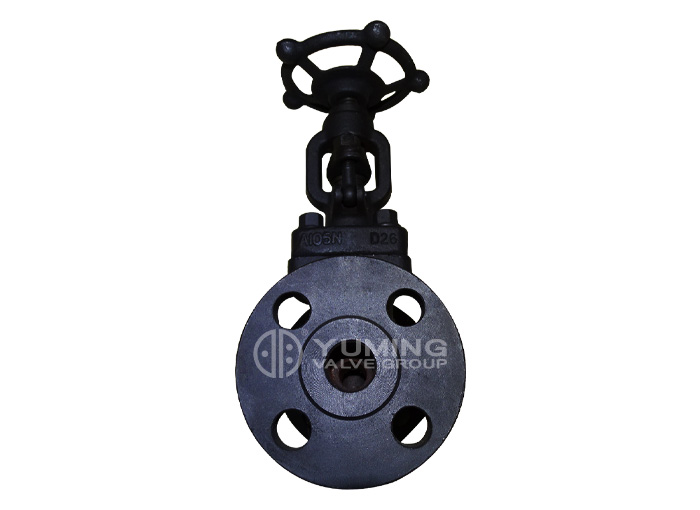

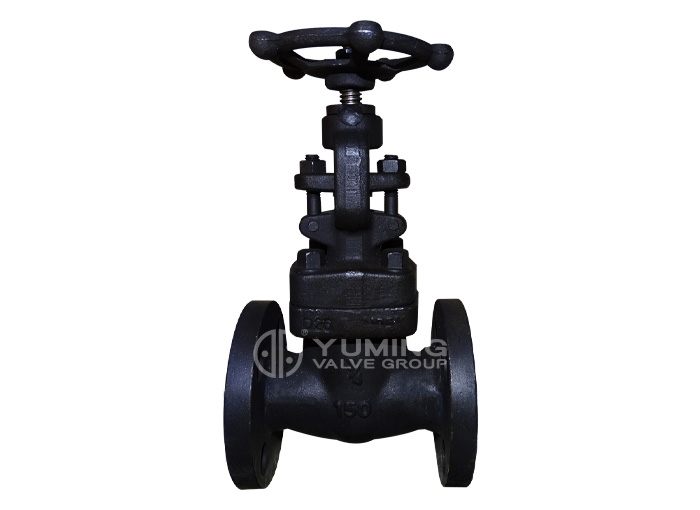

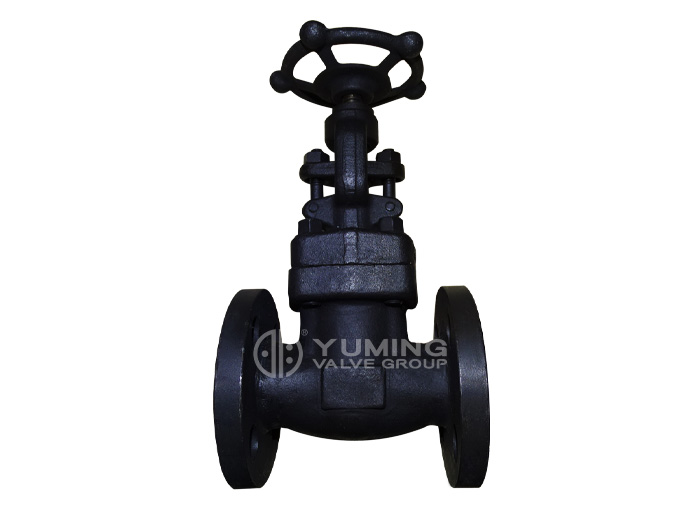

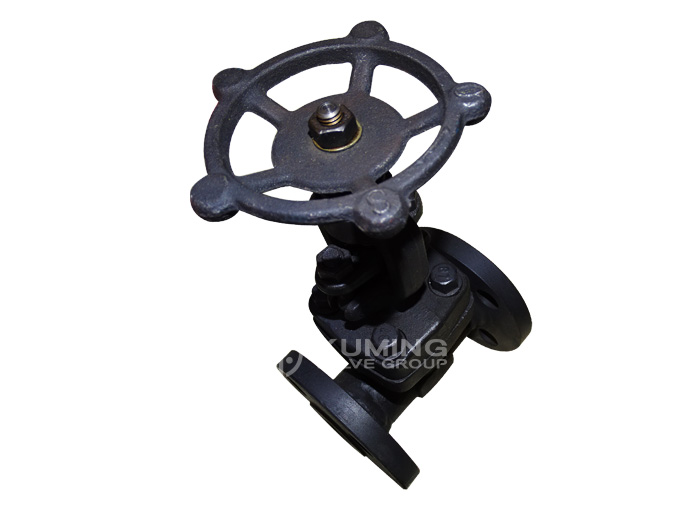

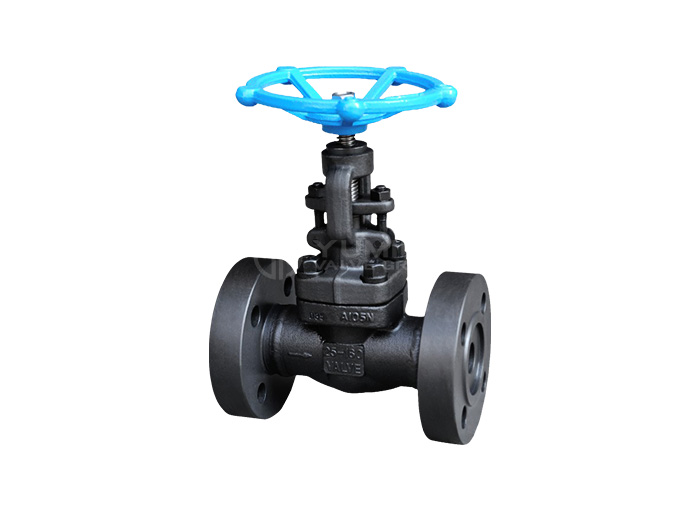

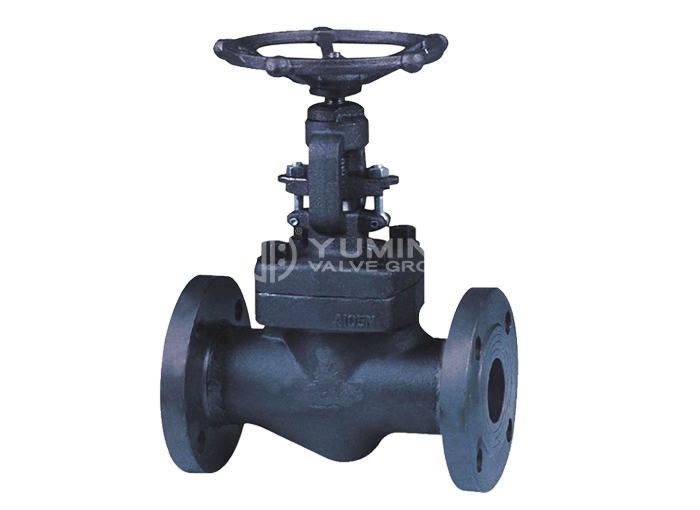

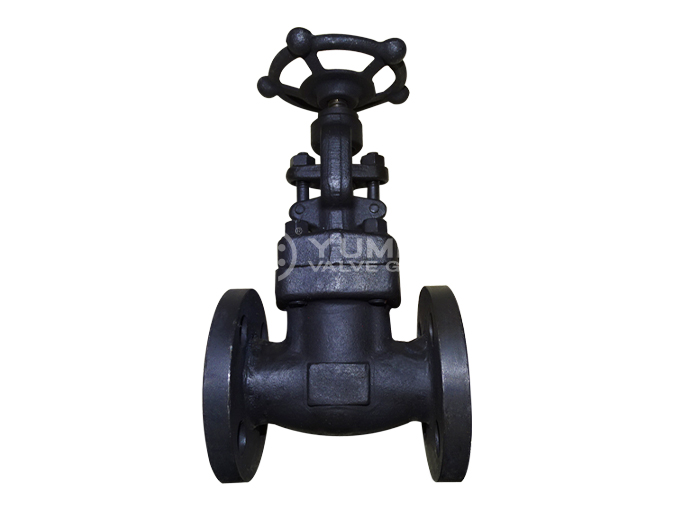

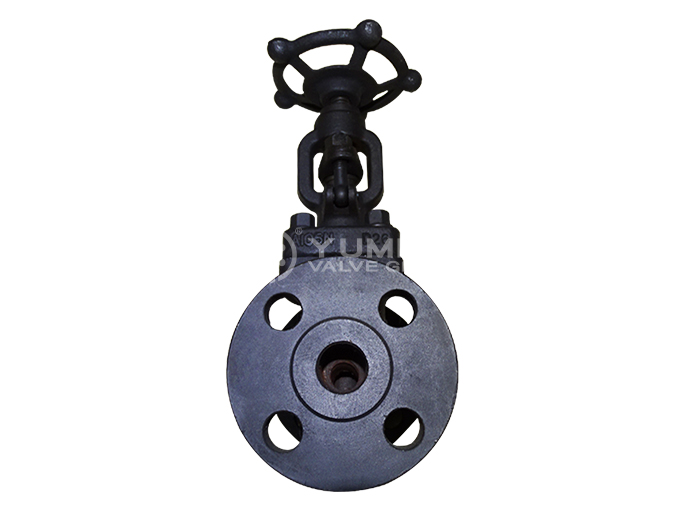

Forged Steel Flange Globe Valve

Size Range: DN15-DN50
Temperature: -29℃-425℃
Pressure: PN16-PN250
Available medium: Water,Oil,Gas,etc
Concatenon: Flange
Operated: Handle
INTRODUCTION
DATA
Related
INQUIRY
INTRODUCTION

Standard Test
Body Test:
1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function/Operation Test: At the time of final inspection,each valve and its actuator (Flow-Control Lever/ Gear/Pneumatic Actuator),under goes a complete operating test (Open/Close).This test carried out without pressure and at ambient temperature.It ensures the correct operation of the valve/actuator assembly with accessories such as solenoid valve,limit switches,air filter regulator etc.
Special Test: On request,any other test can be carried out according to special instruction by client.



Application
1.Water Treatment Plant
2.Breweries
3.Drilling Rigs
4. Heating & Air Conditioning
5.Paper Industry
6.Chemical Industry
7.Gas Plant
8.Pneumatic Conveyors
9.Sugar Industry
10.Waste Effluent Treatment Plant
11.Cooling Water Circulation
12.Compressed Air

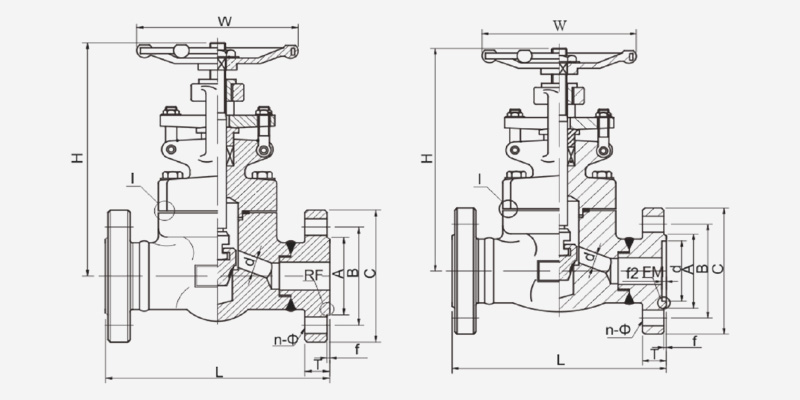

DATA
PN16-PN25
DN d L H W A B C d f f2 T N-ø
15 10.5 130 158 100 45 45 95 - 2 - 16 4-14
20 13 150 160 100 55 55 105 - 2 - 16 4-14
25 17.5 160 198 125 65 65 115 - 2 - 16 4-14
32 23.5 180 226 160 75 75 135 - 2 - 18 4-18
40 28 200 246 160 85 85 145 - 3   18 4-18
50 36 230 290 180 100 100 160 - 3 - 20 4-18

PN40
DN d L H W A B C d f f2 T N-Ø
15 10.5 130 158 100 45 65 95 - 2 - 16 4-14
20 13 150 160 100 55 75 105 - 2 - 16 4-14
25 18 160 198 125 65 85 115 - 2 - 16 4-14
32 24 180 226 160 75 100 135 - 2 - 18 4-18
40 29 200 246 160 85 110 145 - 3 - 18 4-18
50 36.5 230 290 180 100 125 160 - 3 - 20 4-18

PN63
DN d L H W A B C d f f2 T N-Ø
15 10.5 170 170 100 55 75 105 40 2 4 20 4-14
20 13 190 172 100 68 90 125 51 2 4 22 4-14
25 18 210 206 125 78 100 135 58 2 4 24 4-14
32 24 230 230 160 82 110 150 66 2 4 24 4-18
40 29 260 262 160 95 125 165 76 3 4 26 4-18
50 36.5 300 295 180 105 135 175 88 3 4 28 4-18

PN100
DN d L H W A B C d f f2 T N-Ø
15 10.5 130 158 100 55 75 105 40 2 4 20 4-14
20 13 150 160 100 68 90 125 51 2 4 22 4-14
25 17.5 160 198 125 78 100 135 58 2 4 24 4-14
32 24 180 226 160 82 110 150 66 2 4 24 4-18
40 29 200 246 160 95 125 165 76 3 4 26 4-18
50 36.5 230 290 180 105 145 195 88 3 4 28 4-18

PN160
DN d L H W A B C d f f2 T N-Ø
15 10.5 130 158 100 55 75 110 40 2 4 24 4-14
20 13 150 160 125 62 90 130 51 2 4 26 4-14
25 17.5 160 198 160 72 100 140 58 2 4 28 4-14
32 23.5 180 226 160 85 115 165 66 2 4 30 4-18
40 28 200 246 180 92 125 175 76 3 4 32 4-18
50 36 230 290 200 132 165 200 88 3 4 36 4-18

PN250
DN d L H W A B C d f f2 T N-Ø
15 10.5 130 158 100 70 90 130 40 2 4 26 4-14
20 13 150 160 125 75 95 135 51 2 4 28 4-14
25 17.5 160 198 160 82 105 150 58 2 4 28 4-14
32 24 180 226 160 96 120 165 66 2 4 32 4-18
40 29 200 246 180 108 135 185 76 3 4 34 4-18
50 36.5 230 290 200 122 150 200 88 3 4 38 4-18
