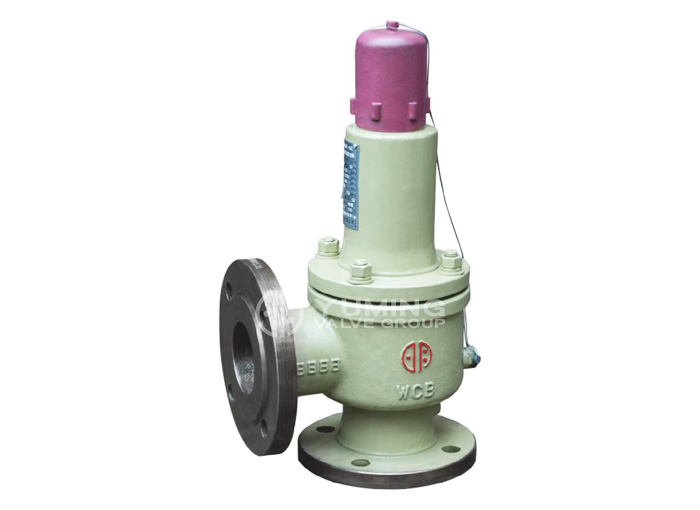

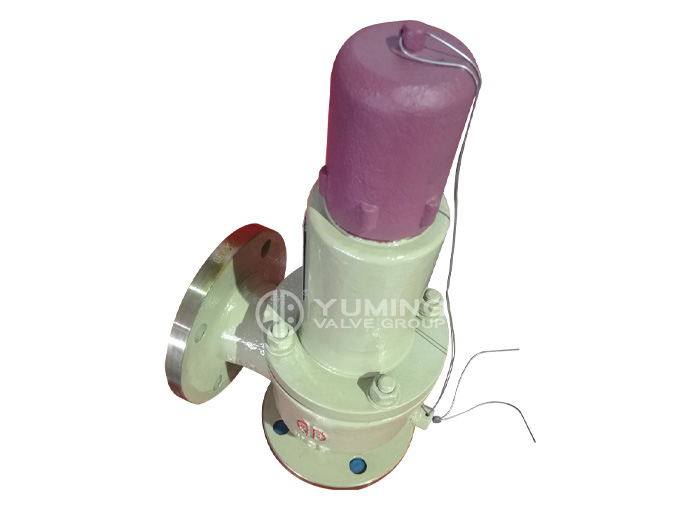

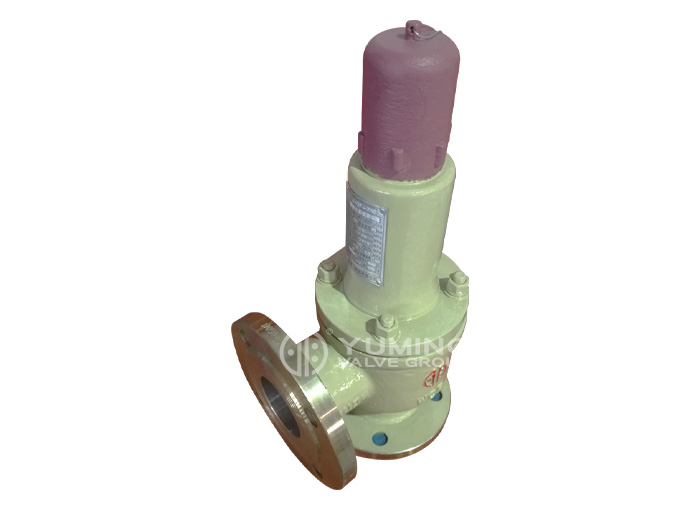

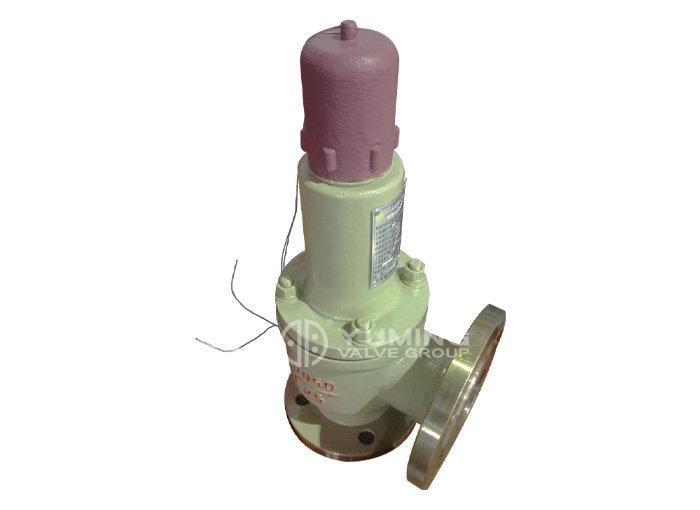

Liquefied petroleum gas safety valve
Liquefied petroleum gas safety valve
Liquefied petroleum gas safety valve
Liquefied petroleum gas safety valve

Liquefied petroleum gas safety valve

Size DN20-DN300
Pressure PN16-PN40
Body Materials WCB
DIsc Materials 20Cr13/0Cr18Ni9
Structure type Spring loaded
Connection flange
Introduction
DATA
Related
INQUIRY
Introduction

Liquefied petroleum gas safety valve

Description:
Safety valve is pressure equipment, containers and pipelines the best overpressure protection device, when the media pressure exceeds the allowable value, the safety valve automatically open, then the full amount of emissions, to prevent the pressure continues to rise, when the pressure decreases to the required value When the safety valve closed automatically in time.
Safety valve design, manufacture, acceptance of technical standards in line with GB / T12243 requirements. Closed valve cover closed type, which will help prevent the intrusion of dust and debris to prevent the overflow of toxic and flammable media; open valve due to open bonnet, help to reduce the temperature of the spring chamber, mainly for the steam medium pipe And containers; safety valve with a radiator is mainly suitable for medium temperature over 300 ℃ conditions. Spring-loaded safety valve with wrench Opens manually with a wrench when the medium pressure reaches more than 75% of the cracking pressure.


DATA
Valve parameters:
Size:DN20-DN300
Pressure:PN16-PN40
Body Materials:WCB
Disc Materials:20Cr13/0Cr18Ni9
Structure type:Spring loaded
Connection:flange
Drive type:automatic
Scope of application:
A42F-type safety valve for liquefied petroleum gas, liquid ammonia, methane, propane and other temperature -40 ℃ ~ 80 ℃ in the range of low-temperature or flammable media pipeline, as overpressure protection device.
AH42F is suitable for the liquid reflux pipe at the outlet of liquefied petroleum gas tank pump whose working temperature is between -40 ℃ ~ 80 ℃. When the pressure difference between inlet and outlet is more than 0.5MPa, the liquefied petroleum gas is automatically returned to tank.

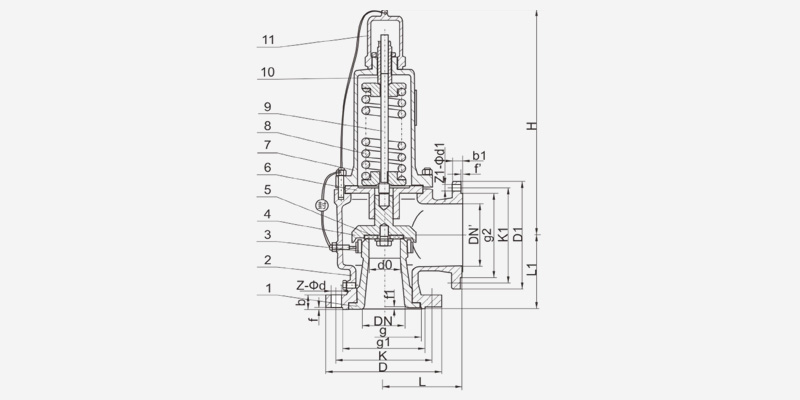

Drawings and dimensions:
