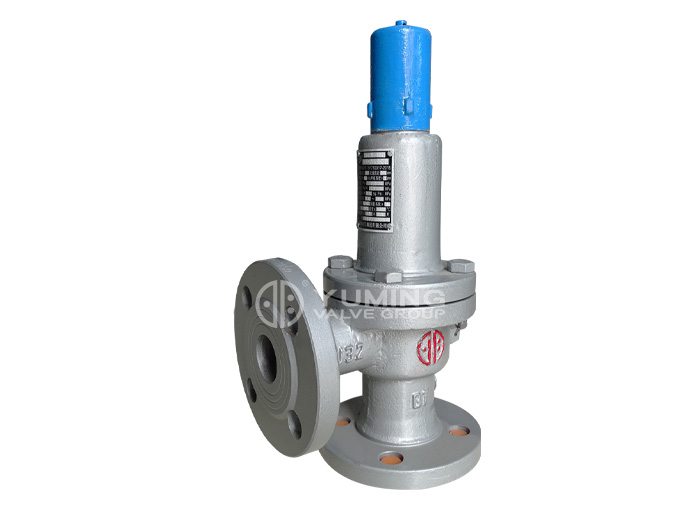

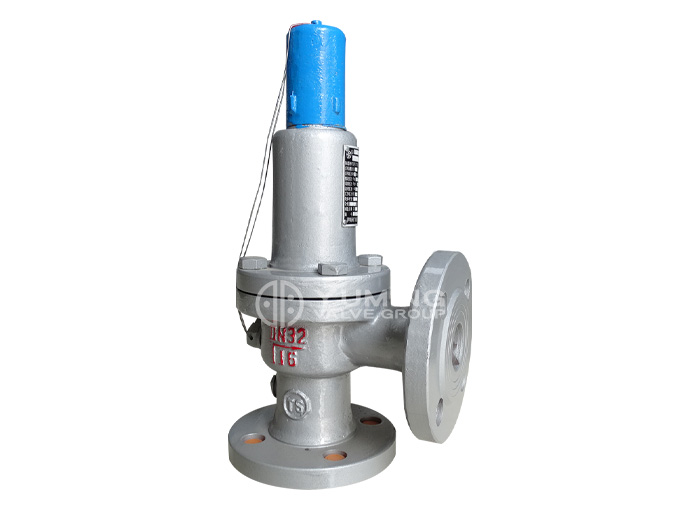

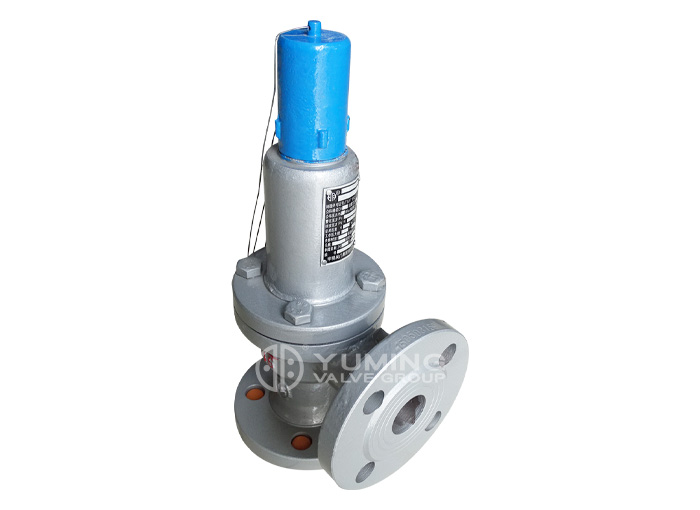

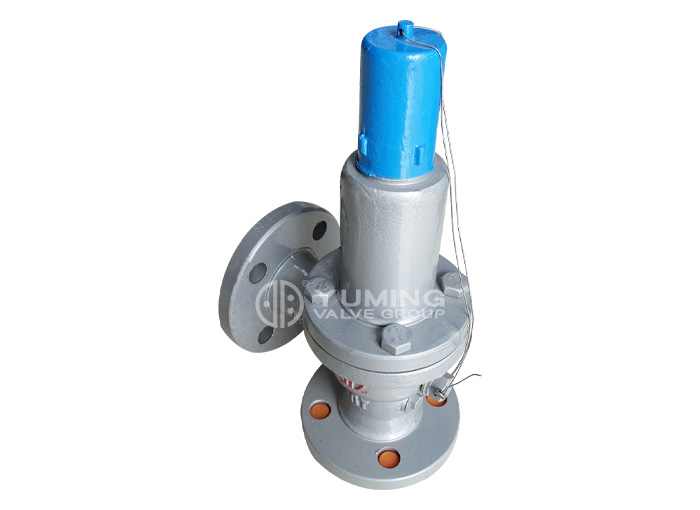

Ductile Iron Spring Micro - open Safety Valve
Ductile Iron Spring Micro - open Safety Valve
Ductile Iron Spring Micro - open Safety Valve
Ductile Iron Spring Micro - open Safety Valve

Ductile Iron Spring Micro - open Safety Valve

Size Range: DN25-DN200
Pressure: PN16
Temperatureody: ≤300℃
Connection: Flange
Medium: air,steam,etc.
Body: Ductile iron
Introduction
DATA
Related
INQUIRY
Introduction
Description:

Safety valve is pressure equipment, containers and pipelines the best overpressure protection device, when the media pressure exceeds the allowable value, the safety valve automatically open, then the full amount of emissions, to prevent the pressure continues to rise, when the pressure decreases to the required value When the safety valve closed automatically in time.
Safety valve design, manufacture, acceptance of technical standards in line with GB / T12243 requirements. Closed valve cover closed type, which will help prevent the intrusion of dust and debris to prevent the overflow of toxic and flammable media; open valve due to open bonnet, help to reduce the temperature of the spring chamber, mainly for the steam medium pipe And containers; safety valve with a radiator is mainly suitable for medium temperature over 300 ℃ conditions. Spring-loaded safety valve with wrench Opens manually with a wrench when the medium pressure reaches more than 75% of the cracking pressure.



Main application:

Applicable to equipment and pipelines with water, air, and other non-corrosive liquids at ≤300°C. When the medium pressure reaches the specified opening pressure, the valve will automatically open (opening height is not less than 1/20do), and then fully discharge. When the pressure drops to the specified reseating pressure, the valve is automatically closed to ensure the safe operation of equipment and pipelines.

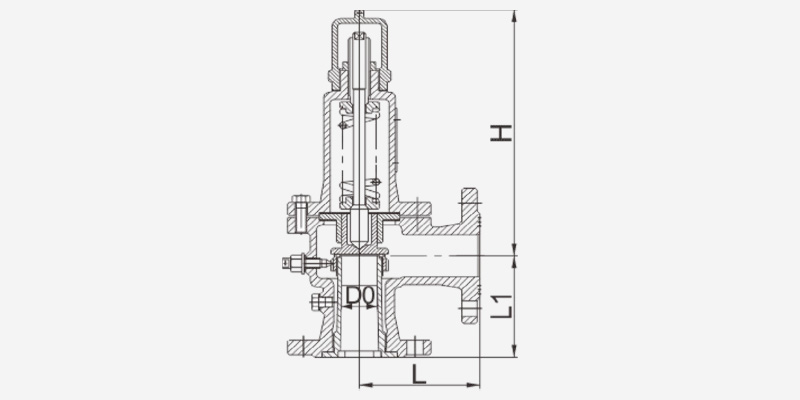

DATA
PN16
  DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200
D0 20 25 32 40 50 65 80 100 125 150
L 100 115 120 135 150 460 205 210 250 305
L1 85 100 110 120 130 135 160 190 210 260
H 246 256 310 310 403 440 560 575 719 755
