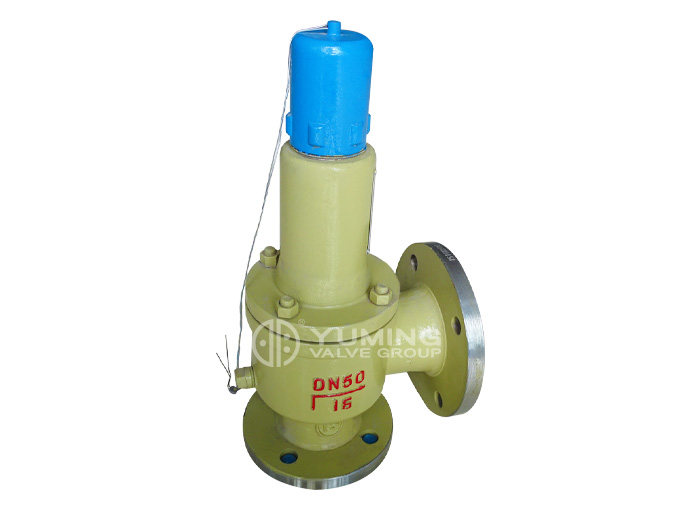

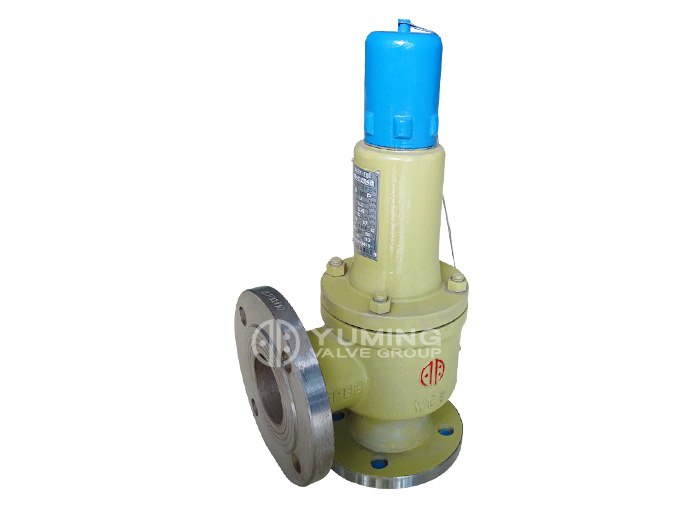

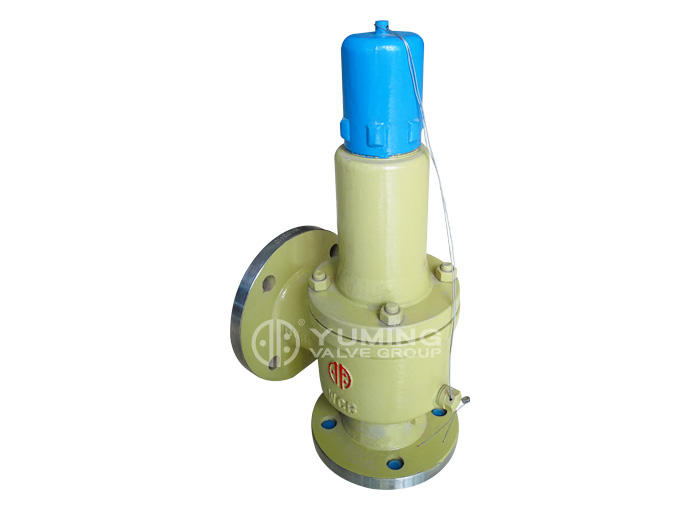

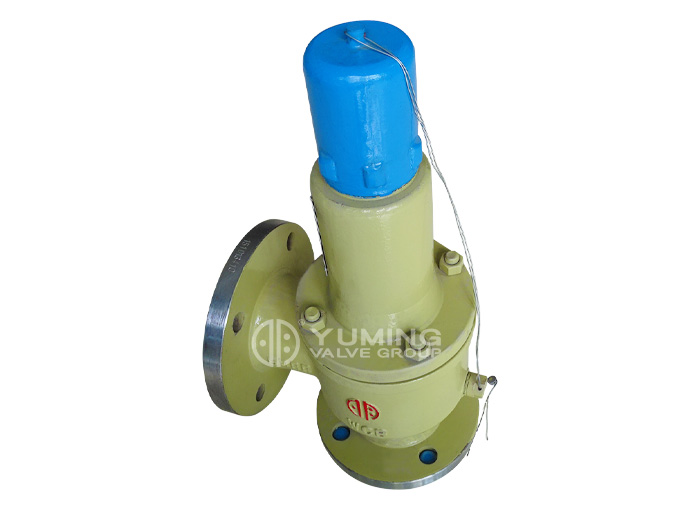

Spring full open closed safety valve

Introduction

Description：

Safety valve is pressure equipment, containers and pipelines the best overpressure protection device, when the media pressure exceeds the allowable value, the safety valve automatically open, then the full amount of emissions, to prevent the pressure continues to rise, when the pressure decreases to the required value When the safety valve closed automatically in time.
Safety valve design, manufacture, acceptance of technical standards in line with GB / T12243 requirements. Closed valve cover closed type, which will help prevent the intrusion of dust and debris to prevent the overflow of toxic and flammable media; open valve due to open bonnet, help to reduce the temperature of the spring chamber, mainly for the steam medium pipe And containers; safety valve with a radiator is mainly suitable for medium temperature over 300 ℃ conditions. Spring-loaded safety valve with wrench Opens manually with a wrench when the medium pressure reaches more than 75% of the cracking pressure.

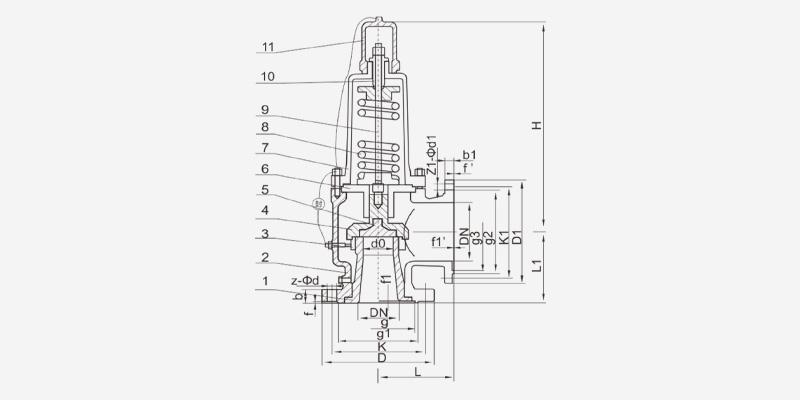

DATA

DN	do	D	K	g	g1	b	f	f1	Z-Φd	DN	D1	K1	g3	g2	b1	f'	f1'		Z1-Φd1	L	L1	H
PN16
20	15	105	75	-	55	16	2	-	4-14	25	115	85	-	65	16	2	-		4-14	110	95	378
25	16	115	85	-	65	16	2	-	4-14	32	140	100	-	78	18	2	-		4-18	110	95	378
32	20	140	100	-	78	18	2	-	4-18	40	150	110	-	85	18	3	-		4-18	115	100	378
40	25	150	110	-	85	18	3	-	4-18	50	165	125	-	100	20	3	-		4-18	120	110	406
50	32	165	125	-	100	20	3	-	4-18	65	185	145	-	120	20	3	-		4-18	135	120	450
65	40	185	145	-	120	20	3	-	4-18	80	200	160	-	135	20	3	-		8-18	150/160	130/140	520
80	50	200	160	-	135	20	3	-	8-18	100	220	180	-	155	22	3	-		8-18	170	135	525
100	65	220	180	-	155	22	3	-	8-18	125	250	210	-	185	22	3	-		8-18	195/205	160/170	690
125	80	250	210	-	185	22	3	-	8-18	150	285	240	-	210	24	3	-		8-23	210	190	780
150	100	285	240	-	210	24	3	-	8-23	175	310	270	-	240	26	3	-		8-23	250/255	210/230	838
200	125	340	295	-	265	26	3	-	12-23	250	405	355	-	320	30	3	-		12-26	300/305	260	992
150	150	405	355	-	320	30	3	-	12-26	300	460	410	-	375	30	4	-		12-26	350	320	1266
300	220	460	410	-	375	30	4	-	12-26	400	580	525	-	485	36	4	-		16-30	370	350	1283
350	250	520	470	-	435	34	4	-	16-26	500	715	650	-	608	44	4	-		20-34	500	450	1520
400	280	580	525	-	485	36	4	-	16-30	500	715	650	-	608	44	4	-		20-34	500	450	1530
PN25
20	15	105	75	-	55	16	2	-	4-14	25	115	85	-	65	16	2	-	4-14		110	95	378
25	16	115	85	-	65	16	2	-	4-14	32	140	100	-	78	18	2	-	4-18		110	95	378
32	20	140	100	-	78	18	2	-	4-18	40	150	110	-	85	18	3	-	4-18		115	100	378
40	25	150	110	-	85	18	3	-	4-18	50	165	125	-	100	20	3	-	4-18		120	110	406
50	32	165	125	-	100	20	3	-	4-18	65	185	145	-	120	20	3	-	4-18		135	120	450
65	40	185	145	-	120	22	3	-	8-18	80	200	160	-	135	20	3	-	8-18		150/160	130/140	520
80	50	200	160	-	135	22	3	-	8-18	100	220	180	-	155	22	3	-	8-18		170	135	525
100	65	230	190	-	160	24	3	-	8-23	125	250	210	-	185	22	3	-	8-18		195/205	160/175	690
125	80	270	220	-	188	28	3	-	8-26	150	285	240	-	210	24	3	-	8-23		210	190	780
150	100	300	250	-	218	30	3	-	8-26	175	310	270	-	240	26	3	-	8-23		250/255	210/230	838
200	125	360	310	-	278	34	3	-	12-26	250	405	355	-	320	30	3	-	12-26		300/305	260	992
250	150	425	370	-	332	36	3	-	12-30	300	460	410	-	375	30	4	一	12-26		350	320	1266
300	220	485	430	-	390	40	4	-	16-30	400	580	525	-	485	36	4	-	16-30		370	350	1283
PN40
DN	do	D	K	g	g1	b	f	f1	Z-Φd	DN	D1	K1	g3	g2	b1	f'	f1'		Z1-Φd1	L	L1	H
20	15	105	75	51	55	16	2	4	4-14	25	115	85	-	65	16	2	-		4-14	110	95	378
25	16	115	85	58	65	16	2	4	4-14	32	140	100	-	78	18	2	-		4-18	110	95	378
32	20	140	100	66	78	18	2	4	4-18	40	150	110	-	85	18	3	-		4-18	115	100	378
40	25	150	110	76	85	18	3	4	4-18	50	165	125	-	100	20	3	-		4-18	120	110	406
50	32	165	125	88	100	20	3	4	4-18	65	185	145	-	120	20	3	-		4-18	135	120	150
65	40	185	145	110	120	22	3	4	8-18	80	200	160	-	135	20	3	-		8-18	150/160	130/140	520
80	50	200	160	121	135	22	3	4	8-18	100	220	180	-	155	22	3	-		8-18	170	135	525
100	65	235	190	150	160	24	3	4.5	8-23	125	250	210	-	185	22	3	-		8-18	195/205	160/175	690
125	80	270	220	176	188	28	3	4.5	8-26	150	285	240	-	210	24	3	-		8-23	210	190	780
150	100	300	250	204	218	30	3	4.5	8-26	175	310	270	-	240	26	3	-		8-23	250/255	210/230	838
200	125	375	320	260	282	38	3	4.5	12-30	250	405	355	-	320	30	3	-		12-26	300	260	992
250	150	450	385	313	345	42	3	4.5	12-34	300	460	410	-	375	30	4	-		12-26	350	320	1266
PN64
DN	do	D	K	g	g1	b	f	f1	Z-Φd	DN	D1	K1	g3	g2	b1	f'	f1'	Z1-Φd1		L	L1	H
20	10	125	90	51	68	22	2	4	4-18	25	115	85	58	65	16	2	4	4-14		110	100	264
25	16	140	100	58	78	22	2	4	4-18	32	140	100	66	78	18	2	4	4-18		110	100	277
32	20	155	110	66	82	24	2	4	4-23	40	150	110	76	85	18	3	4	4-18		130	110	289
40	25	170	125	76	95	24	3	4	4-23	50	165	125	88	100	20	3	4	4-18		130	120	319
50	32	180	135	88	105	26	3	4	4-23	65	185	145	110	120	22	3	4	8-18		155	130	389
65	40	205	160	110	130	28	3	4	8-23	80	200	160	121	135	22	3	4	8-18		175	160	493
80	50	215	170	121	140	30	3	4	8-23	100	235	190	150	160	24	3	4.5	8-23		175	160	483
100	65	250	200	150	168	32	3	4.5	8-26	125	270	220	176	188	28	3	4.5	8-25		195	195	613
150	88	345	280	204	240	38	3	4.5	8-34	200	375	320	260	282	38	3	4.5	12-30		285	260	894
PN100
20	10	125	90	51	68	22	2	4	4-18	25	115	85	58	65	16	2	4		4-14	110	100	264
25	16	140	100	58	78	24	2	4	4-18	32	140	100	66	78	18	2	4		4-18	110	100	277
32	20	155	110	66	82	24	2	4	4-23	40	150	110	76	85	18	3	4		4-18	130	110	289
40	25	170	125	76	95	26	3	4	4-23	50	165	125	88	100	20	3	4		4-18	130	120	319
50	32	195	145	88	112	28	3	4	4-26	65	185	145	110	120	22	3	4		8-18	155	130	389
65	40	220	170	110	138	32	3	4	8-26	80	200	160	121	135	22	3	4		8-18	175	160	493
80	50	230	180	121	148	34	3	4	8-26	100	235	190	150	160	24	3	4.5		8-23	175	160	483
100	65	265	210	150	172	38	3	4.5	8-30	125	270	220	176	188	28	3	4.5		8-25	195	195	613
150	88	355	290	204	250	46	3	4.5	12-34	200	375	320	260	282	38	3	4.5		12-30	285	260	894
