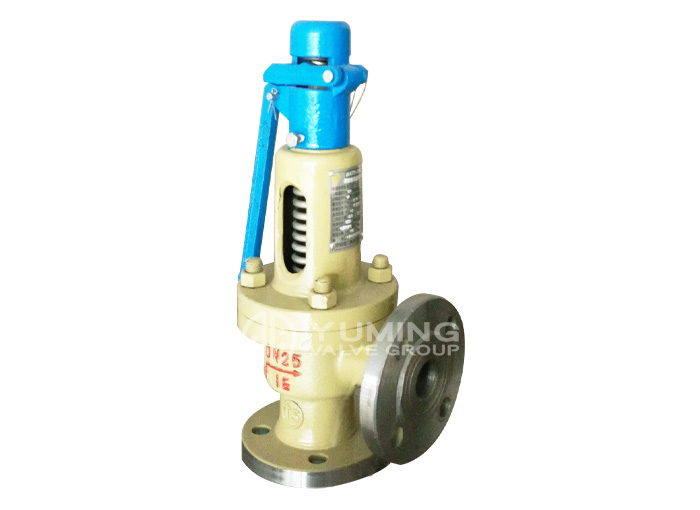

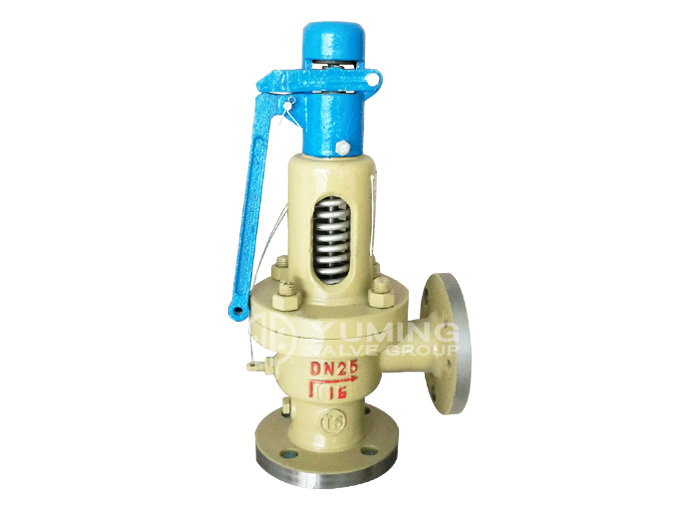

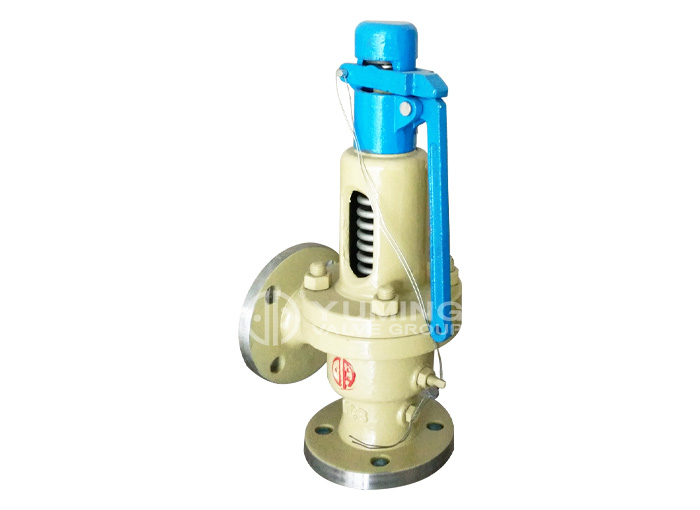

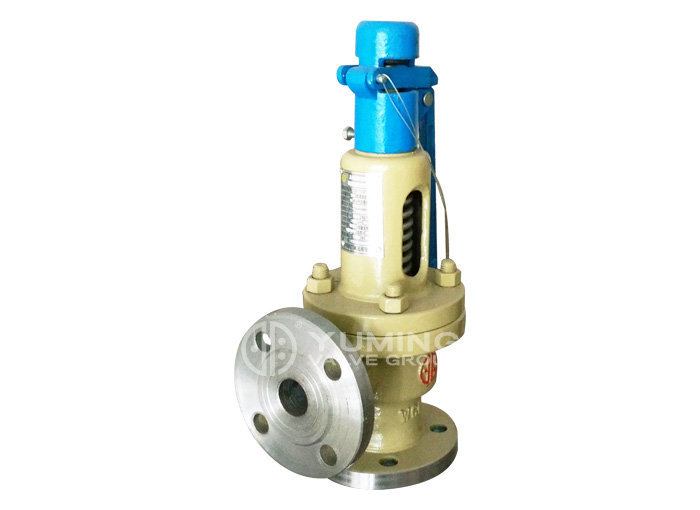

Spring Loaded Full Lift Safety Valve with Lifting Lever

Product Type Spring Loaded Full Lift Safety Valve with Lifting Lever
Model A48Y/A48H
Standard GB/T 12243
Nominal Size DN25 -400(1"-16")
Pressure Rating PN16-PN64
Connection Flanged, RF
Body Material WCB
Seat / Disc Stellite hard-faced (Co-Cr-W)
Bonnet Type Open bonnet
Lift Type Full lift
Introduction
DATA
Related
INQUIRY
Introduction
The A48 series is a direct spring-loaded, full lift safety valve with a flanged connection and an external lifting lever, designed for automatic overpressure protection of steam boilers, air receivers, pressure vessels and industrial piping systems.

When system pressure reaches the set pressure, the medium lifts the disc and discharges through the side outlet. As pressure falls back to the reseating value, the spring closes the disc automatically. The full lift design — lift height of at least one quarter of the throat diameter — delivers substantially higher discharge capacity than a micro lift valve of the same bore, which is why it is the standard choice for steam service.

Open bonnet construction
The spring is exposed to atmosphere rather than enclosed in a sealed bonnet. Heat from the steam dissipates before it reaches the spring, preventing spring relaxation and set pressure drift — a common failure mode in high-temperature service. The open bonnet also keeps the spring and adjusting screw visible and accessible for inspection without dismantling the valve.

Lifting lever
The external lever allows an operator to lift the disc manually at up to 75% of set pressure, verifying that the valve is free to open and clearing debris from the seat. This is a routine requirement in most boiler inspection codes, and far quicker than disassembling a closed-bonnet valve.

Materials and construction
The body is cast in [WCB carbon steel / ductile iron], with a Stellite hard-faced seat and disc for erosion resistance under high-velocity steam. The nozzle is a separate screwed-in component, so it can be replaced on site without scrapping the body. The adjusting screw sets the spring compression and therefore the set pressure, and is locked after factory calibration.

Size and pressure range
DN25 to DN200 at PN16. Inlet and outlet flanges are sized independently — the outlet is normally one nominal size larger than the inlet to accommodate the expanded discharge volume. Please specify both when requesting a quotation.

Standard and testing
Manufactured to GB/T 12243. Every valve is hydrostatically tested and set at the specified pressure before dispatch, with a set pressure calibration record and a material certificate to EN 10204 3.1 available on request.

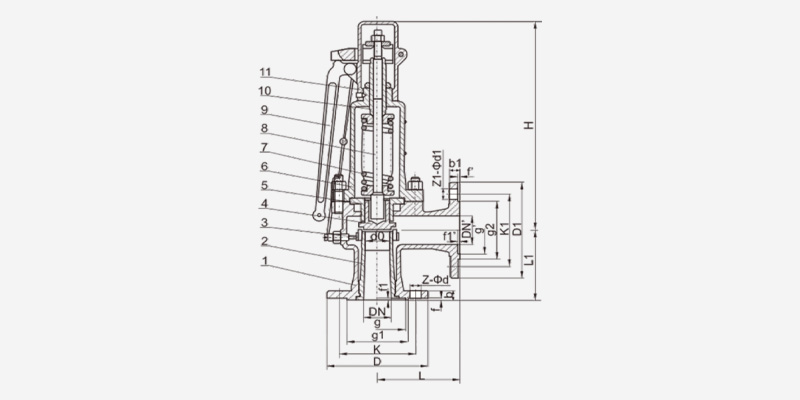

DATA
DN do D K g g1 b f f1 Z-Φd DN D1 K1 g3 g2 b1 f f1' Z1-Φd1 L L1 H
PN16
25 16 115 85 - 65 16 2 一 4-14 32 140 100 - 78 18 2 - 4-18 110 95 411
32 20 140 100 - 78 18 2 - 4-18 40 150 110 - 85 18 3 - 4-18 115 100 411
40 25 150 110 - 85 18 3 - 4-18 50 165 125 - 100 20 3 - 4-18 120 110 472
50 32 165 125 - 100 20 3 - 4-18 65 185 145 - 120 20 3 - 4-18 135 120 532
65 40 185 145 - 120 20 3 - 4-18 80 200 160 - 135 20 3 - 8-18 150/160 130/140 556
80 50 200 160 - 135 20 3 - 8-18 100 220 180 - 15 22 3 - 8-18 170 135 561
100 65 220 180 - 155 20 3 - 8-18 125 250 210 - 185 22 3 - 8-18 195/205 160/175 667
125 80 250 210 - 185 20 3 - 8-18 150 285 240 - 210 24 3 - 8-23 210 190 857
150 100 285 240 - 210 24 3 - 8-23 175 310 270 - 240 26 3 - 8-23 250/255 210/230 915
200 125 340 195 - 265 26 3 - 12-23 250 405 355 - 320 30 3 - 12-26 300/305 260 1073
250 150 405 355 - 320 30 3 - 12-26 300 460 410 - 375 30 4 - 12-26 350 320 1307
300 220 460 410 - 375 30 4 - 12-26 400 580 525 - 485 36 4 - 16-30 370 350 1233
350 250 520 470 - 435 34 4 - 16-26 500 715 650 - 608 44 4 - 20-34 500 450 1711
400 280 580 525 - 485 36 4 - 16-30 500 715 650 - 608 44 4 - 20-34 500 450 1780
PN25
20 15 105 75 - 55 16 2 - 4-14 25 115 85 - 65 16 2 - 4-14 110 95 411
25 16 115 85 - 65 16 2 - 4-14 32 140 100 - 78 18 2 - 4-18 110 95 411
32 20 140 100 - 78 18 2 - 4-18 40 150 110 - 85 18 3 - 4-18 115 100 411
40 25 150 110 - 85 18 3 - 4-18 50 165 125 - 100 20 3 - 4-18 120 110 172
50 32 165 125 - 100 20 3 - 4-18 65 185 145 - 120 20 3 - 4-18 135 120 532
65 40 185 145 - 120 22 3 - 8-18 80 200 160 - 135 20 3 - 8-18 150/160 130/140 556
80 50 200 160 - 135 22 3 - 8-18 100 220 180 - 155 22 3 - 8-18 170 135 561
100 65 230 190 - 160 24 3 - 8-23 125 250 210 - 185 22 3 - 8-18 195/205 160/175 667
125 80 270 220 - 188 28 3 - 8-26 150 285 240 - 210 24 3 - 8-23 210 190 857
150 100 300 250 - 218 30 3 - 8-26 175 310 270 - 240 26 3 - 8-23 250/255 210/230 915
200 125 360 310 - 278 34 3 - 12-26 250 405 355 - 320 30 3 - 12-26 300/305 260 1073
250 150 425 370 - 332 36 3 - 12-30 300 460 410 - 375 30 4 - 12-26 350 320 1307
300 220 485 430 - 390 40 4 - 16-30 400 580 525 - 485 36 4 - 16-30 370 350 1233
350 250 555 490 - 448 44 4 - 16-34 500 715 650 - 608 44 4 - 20-34 500 450 1711
400 280 620 550 - 505 48 4 - 16-36 500 715 650 - 608 44 4 - 20-34 500 450 1780
PN40
20 15 105 75 51 55 16 2 4 4-14 25 115 85 - 65 16 2 - 4-14 110 95 411
25 16 115 85 58 65 16 2 4 4-14 32 140 100 - 78 18 2 - 4-18 110 95 411
32 20 140 100 66 78 18 2 4 4-18 40 150 110 - 85 18 3 - 4-18 115 100 411
40 25 150 110 76 85 18 3 4 4-18 50 165 125 - 100 20 3 - 4-18 120 110 472
50 32 165 125 88 100 20 3 4 4-18 65 185 145 - 120 20 3 - 4-18 135 120 532
65 40 185 145 110 120 22 3 4 8-18 80 200 160 - 135 20 3 - 8-18 160 140 556
80 50 200 160 121 135 22 3 4 8-18 100 220 180 - 155 22 3 - 8-18 170 135 561
100 65 235 190 150 160 24 3 4.5 8-23 125 250 210 - 185 22 3 - 8-18 195 175 697
125 80 270 220 176 188 28 3 4.5 8-26 150 285 240 - 210 24 3 - 8-23 210 190 857
150 100 300 250 204 218 30 3 4.5 8-26 175 310 270 - 240 26 3 - 8-23 255 230 915
200 125 375 320 260 282 38 3 4.5 12-30 250 405 355 - 320 30 3 - 12-26 300 260 1073
250 150 450 385 313 345 42 3 4.5 12-34 300 460 410 - 375 30 4 - 12-26 350 320 1307
300 220 515 450 364 408 46 4 4.5 16-34 400 580 525 - 485 36 4 - 16-30 370 350 1233
350 250 580 510 422 465 52 4 5 16-36 500 715 650 - 608 44 4 - 20-34 500 450 1711
400 280 660 585 474 535 58 4 5 16-41 500 715 650 - 608 44 4 - 20-34 500 450 1711
PN64
20 10 125 90 51 68 22 2 4 4-18 25 115 85 58 65 16 2 4 4-14 110 100 297
25 16 140 100 58 78 22 2 4 4-18 32 140 100 66 78 18 2 4 4-18 110 100 310
32 20 155 110 66 82 24 2 4 4-23 40 150 110 76 85 18 3 4 4-18 130 110 322
40 25 170 125 76 95 24 3 4 4-23 50 165 125 88 100 20 3 4 4-18 130 120 352
50 32 180 135 88 105 26 3 4 4-23 65 185 145 110 120 22 3 4 8-18 155 130 425
65 40 205 160 110 130 28 3 4 8-23 80 200 160 121 135 22 3 4 8-18 175 160 570
80 50 215 170 121 140 30 3 4 8-23 100 235 190 150 160 24 3 4.5 8-23 175 160 560
100 65 250 200 150 168 32 3 4.5 8-26 125 270 220 176 188 28 3 4.5 8-25 195 195 690
150 100 345 280 204 240 38 3 4.5 8-34 200 375 320 260 282 38 3 4.5 12-30 285 260 935
PN100
20 10 125 90 51 68 22 2 4 4-18 25 115 85 58 65 16 2 4 4-14 96 85 297
25 16 140 100 58 78 24 2 4 4-18 32 140 100 66 78 18 2 4 4-18 110 100 310
32 20 155 110 66 82 24 2 4 4-23 40 150 110 76 85 18 3 4 4-18 130 110 322
40 25 170 125 76 95 26 3 4 4-23 50 165 125 88 100 20 3 4 4-18 130 120 352
50 32 195 145 88 112 28 3 4 4-23 65 185 145 110 120 22 3 4 8-18 155 130 425
65 32 220 170 110 138 32 3 4 8-23 80 200 160 121 135 22 3 4 8-18 175 160 570
80 40 230 180 121 148 34 3 4 8-23 100 235 190 150 160 24 3 4.5 8-23 175 160 560
100 50 265 210 150 172 38 3 4.5 8-26 125 270 220 176 188 28 3 4.5 8-25 195 195 690
150 80 355 290 204 250 46 3 4.5 8-34 200 375 320 260 282 38 3 4.5 12-30 285 260 935

FAQ:

Q1. What is the difference between a full lift and a micro lift safety valve?

A full lift valve opens to at least one quarter of its throat diameter, giving a much higher discharge capacity for the same bore. A micro lift valve opens only a fraction of that and is used where a small, controlled release is sufficient. For steam boilers and large pressure vessels, full lift is the standard choice.



Q2. Why does this valve have an open bonnet instead of a closed one?
The open bonnet exposes the spring to atmosphere so heat from the steam dissipates before reaching the spring coil. This prevents spring relaxation and the set pressure drift that follows. Closed bonnets are used where the medium must not escape to atmosphere or where the environment is corrosive.



Q3. What is the lifting lever for?
The lever lets an operator manually lift the disc at up to 75% of set pressure to confirm the valve is free to open and to clear debris from the seat. Most boiler inspection codes require this check at regular intervals.



Q4. Which media can this safety valve handle?
Steam, air and non-corrosive gases up to 350°C. For corrosive media, service above 350°C, or liquids, a different body material and trim combination should be specified.



Q5. Is the outlet the same size as the inlet?
No. The outlet is normally one nominal size larger than the inlet, because the discharge volume expands as pressure drops. A DN25 inlet typically pairs with a DN32 or DN40 outlet. Please specify both when requesting a quotation.



Q6. Can the set pressure be adjusted on site?
The set pressure is set by the adjusting screw, which controls spring compression. It is calibrated and locked at the factory. On-site adjustment should only be carried out by qualified personnel with a calibrated test bench, followed by re-sealing.



Q7. What standard is this valve manufactured to?
GB/T 12243, the Chinese national standard for direct spring-loaded safety valves. This is the standard most commonly specified on Chinese-designed EPC projects and on equipment originally supplied from China.
