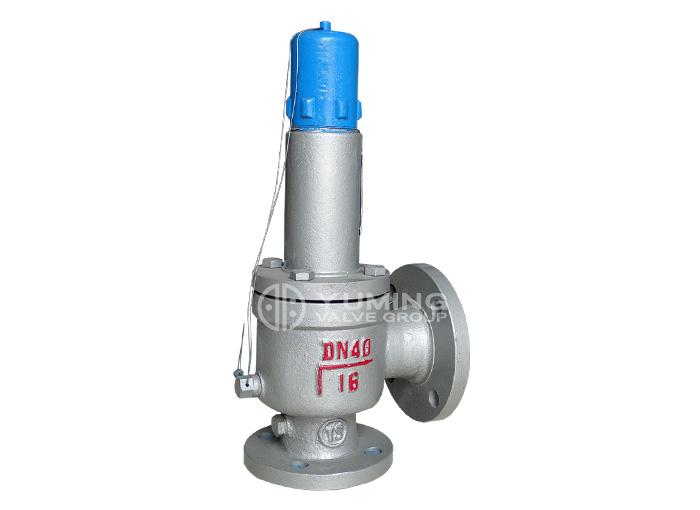

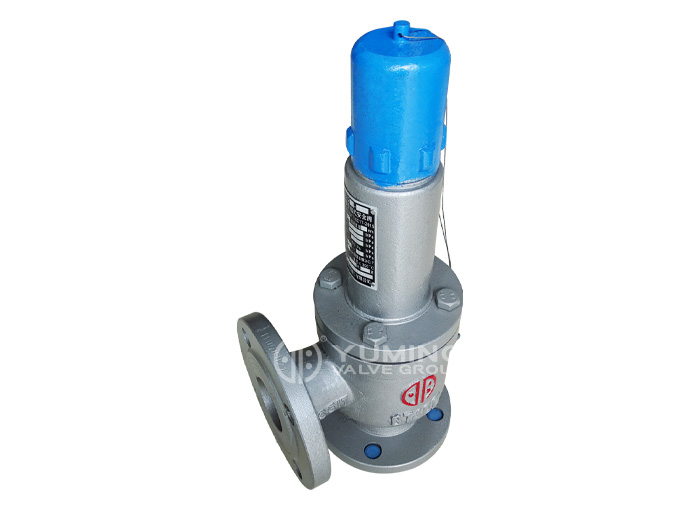

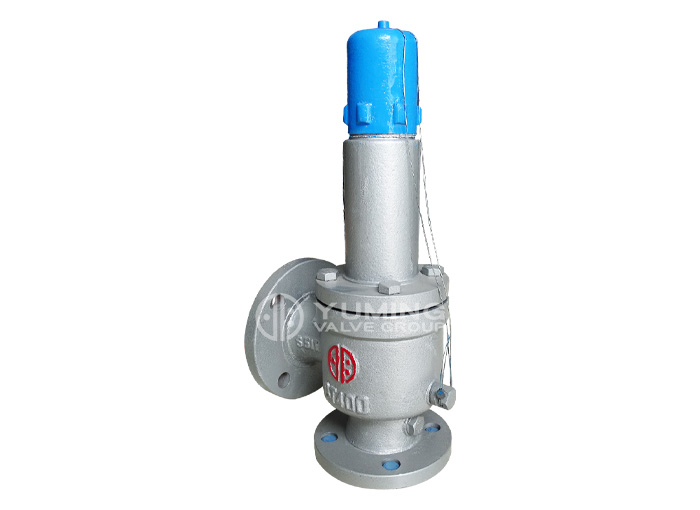

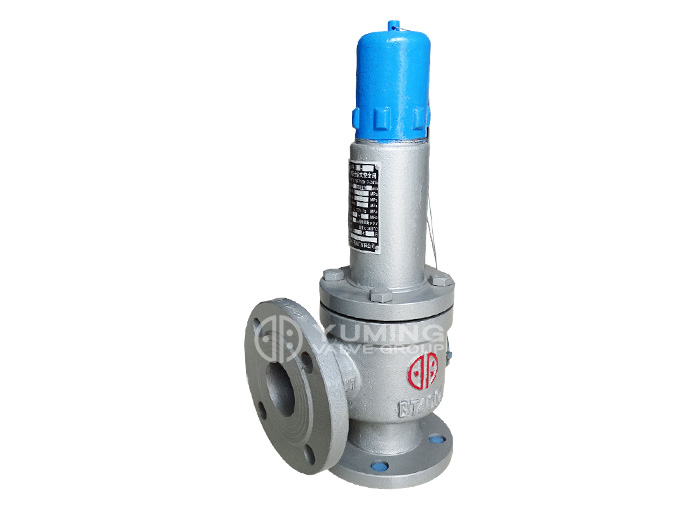

Ductile Iron Spring Full - open Safety Valve

Description：

Safety valve is pressure equipment, containers and pipelines the best overpressure protection device, when the media pressure exceeds the allowable value, the safety valve automatically open, then the full amount of emissions, to prevent the pressure continues to rise, when the pressure decreases to the required value When the safety valve closed automatically in time.
Safety valve design, manufacture, acceptance of technical standards in line with GB / T12243 requirements. Closed valve cover closed type, which will help prevent the intrusion of dust and debris to prevent the overflow of toxic and flammable media; open valve due to open bonnet, help to reduce the temperature of the spring chamber, mainly for the steam medium pipe And containers; safety valve with a radiator is mainly suitable for medium temperature over 300 ℃ conditions. Spring-loaded safety valve with wrench Opens manually with a wrench when the medium pressure reaches more than 75% of the cracking pressure.



Main application：

It is suitable for equipment and pipelines with air ≤300°C and other non-flammable, explosive, and non-corrosive gases. When the medium pressure reaches the specified opening pressure, the valve will automatically open (opening height is not less than 1/4do), Then the full amount is discharged, and when the pressure drops to the specified reseating pressure, the valve is automatically closed to ensure the safe operation of equipment and pipelines.
