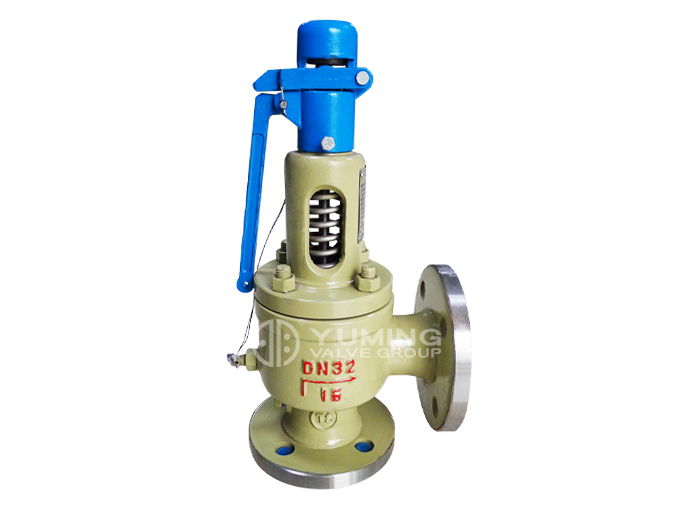

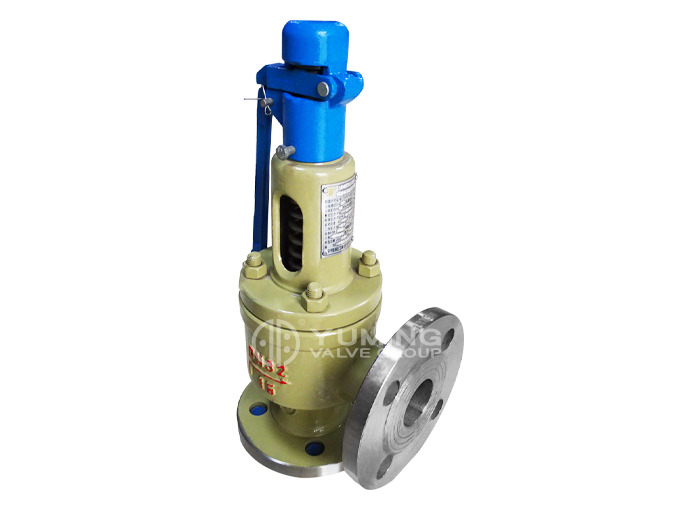

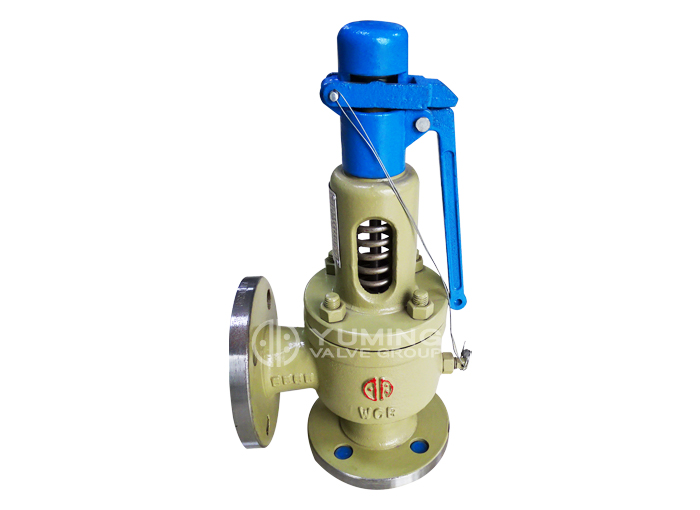

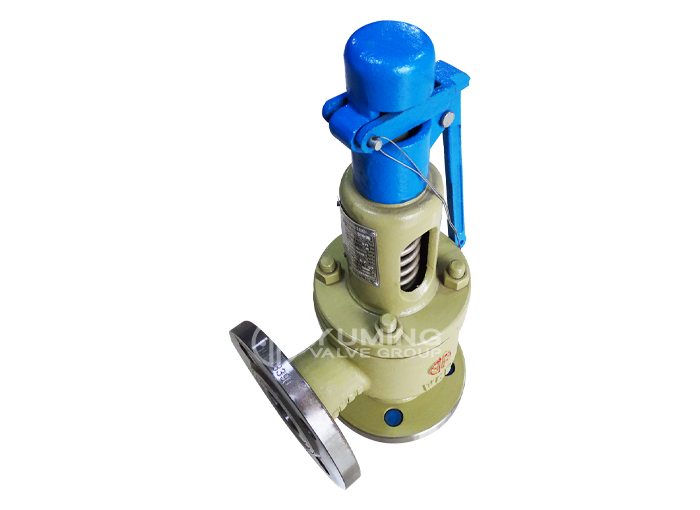

With wrench spring micro - open safety valve

Introduction

Description：

Safety valve is pressure equipment, containers and pipelines the best overpressure protection device, when the media pressure exceeds the allowable value, the safety valve automatically open, then the full amount of emissions, to prevent the pressure continues to rise, when the pressure decreases to the required value When the safety valve closed automatically in time.
Safety valve design, manufacture, acceptance of technical standards in line with GB / T12243 requirements. Closed valve cover closed type, which will help prevent the intrusion of dust and debris to prevent the overflow of toxic and flammable media; open valve due to open bonnet, help to reduce the temperature of the spring chamber, mainly for the steam medium pipe And containers; safety valve with a radiator is mainly suitable for medium temperature over 300 ℃ conditions. Spring-loaded safety valve with wrench Opens manually with a wrench when the medium pressure reaches more than 75% of the cracking pressure.

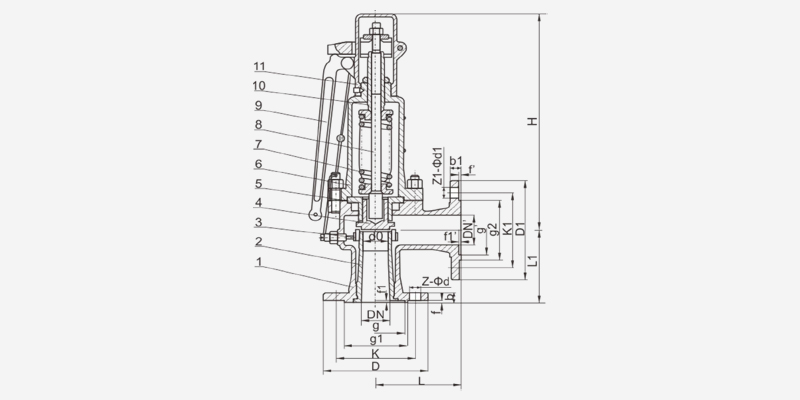

DATA

DN	do	D	K	g	g1	b	f	f1	Z-Φd	DN'	D1	K1	g3	g2	b1	f'	f1'	Z1-Φd1	L	L1	H
PN16
20	15	105	75	-	55	16	2	-	4-14	20	105	75	-	55	16	2	-	4-14	100	85	270
25	20	115	85	-	65	16	2	-	4-14	25	115	85	-	65	16	2	-	4-14	100	85	270
32	25	140	100	-	78	18	2	-	4-18	32	140	100	-	78	18	2	-	4-18	115	100	315
40	32	150	110	-	85	18	3	-	4-18	40	150	110	-	85	18	3	-	4-18	120	110	320
50	40	165	125	-	100	20	3	-	4-18	50	165	125	-	100	20	3	-	4-18	135	120	390
65	50	185	145	-	120	20	3	-	4-18	65	185	145	-	120	20	3	-	4-18	140/150	130	395
80	65	200	160	-	135	20	3	-	8-18	80	200	160	-	135	20	3	-	8-18	160/170	135	400
100	80	220	180	-	155	22	3	-	8-18	100	220	180	-	155	22	3	-	8-18	170/205	160	600
125	100	250	210	-	185	22	3	-	8-18	125	250	210	-	185	22	3	-	8-18	190/210	190	620
150	125	285	140	-	210	24	3	-	8-23	150	285	240	-	210	24	3	-	8-23	205/205	195/210	625
200	150	340	295	-	265	26	3	-	12-23	200	340	295	-	265	26	3	-	12-23	240/305	230/260	798
250	200	405	355	-	320	30	3	-	12-26	250	405	355	-	320	30	3	-	12-26	350	320	981
300	250	460	410	-	375	30	4	-	12-26	300	460	410	-	375	30	4	-	12-26	370	300	1005
DN	do	D	K	g	g1	b	f	f1	Z-Φd	DN'	D1	K1	g3	g2	b1	f	f1'	Z1-Φd1	L	L1	H
PN25
20	15	105	75	-	55	16	2	-	4-14	20	105	75	-	55	16	2	-	4-14	100	85	270
25	20	115	85	-	65	16	2	-	4-14	25	115	85	-	65	16	2	-	4-14	100	85	270
32	25	140	100	-	78	18	2	-	4-18	32	140	100	-	78	18	2	-	4-18	115	100	312
40	32	150	110	-	85	18	3	-	4-18	40	150	110	-	85	18	3	-	4-18	120	110	320
50	40	165	125	-	100	20	3	-	4-18	50	165	125	-	100	20	3	-	4-18	135	120	390
65	50	185	145	-	120	22	3	-	8-18	65	185	145	-	120	20	3	-	4-18	140/150	130	395
80	65	200	160	-	135	24	3	-	8-18	80	200	160	-	135	20	3	-	8-18	160/170	135	400
100	80	230	190	-	160	24	3	-	8-23	100	220	180	-	155	20	3	-	8-18	170/205	160	600
125	100	270	220	-	188	28	3	-	8-26	125	250	210	-	185	22	3	-	8-18	190/210	190	620
150	125	300	250	-	218	30	3	-	8-26	150	285	240	-	210	24	3	-	8-23	205/205	195/210	625
200	150	360	310	-	278	34	3	-	12-26	200	340	295	-	265	26	3	-	12-23	240/305	230/260	798
250	200	425	370	-	332	36	3	-	12-30	250	405	355	-	320	30	3	-	12-26	350	320	981
300	250	485	430	-	390	40	4	-	16-30	300	460	410	-	375	30	4	-	12-26	370	300	1005
PN40
20	15	105	75	51	55	16	2	4	4-14	20	105	75	-	55	16	2	-	4-14	100	85	270
25	20	115	85	58	65	16	2	4	4-14	25	115	85	-	65	16	2	-	4-14	100	85	270
32	25	140	100	66	78	18	2	4	4-18	32	140	100	-	78	18	2	-	4-18	115	100	312
40	32	150	110	76	85	18	3	4	4-18	40	150	110	-	85	18	3	-	4-18	120	110	320
50	40	165	125	88	100	20	3	4	4-18	50	165	125	-	100	20	3	-	4-18	135	120	390
65	50	185	145	110	120	22	3	4	8-18	65	185	145	-	120	20	3	-	4-18	140/150	130	395
80	65	200	160	121	135	22	3	4	8-18	80	200	160	-	135	20	3	-	8-18	160/170	135	400
100	80	235	190	150	160	24	3	4.5	8-23	100	220	180	-	155	22	3	-	8-18	170/205	160	600
125	100	270	220	176	188	28	3	4.5	8-26	125	250	210	-	185	22	3	-	8-18	190/210	190	620
150	125	300	250	204	218	30	3	4.5	8-26	150	285	240	-	210	24	3	-	8-23	205/205	195/210	625
200	150	375	320	260	282	38	3	4.5	12-30	200	340	295	-	265	26	3	-	12-23	240/305	230/260	798
250	200	450	385	313	345	42	3	4.5	12-34	250	405	355	-	320	30	3	-	12-26	350	320	981
300	250	515	450	364	408	46	4	4.5	16-34	300	460	410	-	375	30	4	-	12-26	370	300	1005
DN	do	D	K	g	g1	b	f	f1	Z-Φd	DN'	D1	K1	g3	g2	b1	f	f1'	Z1-Φd1	L	L1	H
PN64
20	15	130	90	51	68	20	2	4	4-18	20	105	75	55	51	16	2	4	4-14	100	95	301
25	20	140	100	58	78	22	2	4	4-18	25	115	85	65	58	16	2	4	4-14	100	95	301
32	25	155	110	66	82	24	2	4	4-23	32	140	100	78	66	18	2	4	4-18	115	105	315
40	32	170	125	76	95	24	3	4	4-23	40	150	110	85	76	18	3	4	4-18	135	115	366
50	40	180	135	88	105	26	3	4	4-23	50	165	125	100	88	20	3	4	4-18	160	125	396
65	50	205	160	110	130	28	3	4	8-23	65	185	145	120	110	22	3	4	8-18	175	160	570
80	65	215	170	121	140	30	3	4	8-23	80	200	160	135	121	22	3	4	8-18	175	160	565
100	80	250	200	150	168	32	3	4.5	8-26	100	235	190	160	150	24	3	4.5	8-23	190	180	597
150	100	345	280	204	240	38	3	4.5	8-34	150	300	250	218	204	30	3	4.5	8-26	280	260	738
PN100
20	15	130	90	51	68	22	2	4	4-18	20	105	75	55	51	16	2	4	4-14	100	95	301
25	20	140	100	58	78	24	2	4	4-18	25	115	85	65	58	16	2	4	4-14	100	95	301
32	25	155	110	66	82	24	2	4	4-23	32	140	100	78	66	18	2	4	4-18	115	105	315
40	32	170	125	76	95	26	3	4	4-23	40	150	110	85	76	18	3	4	4-18	135	115	366
50	40	195	145	88	112	28	3	4	4-26	50	165	125	100	88	20	3	4	4-18	160	125	396
65	50	220	170	110	138	32	3	4	8-26	65	185	145	120	110	22	3	4	8-18	175	160	570
80	65	230	180	121	148	34	3	4	8-26	80	200	160	135	121	22	3	4	8-18	175	160	565
100	80	265	210	150	172	38	3	4.5	8-30	100	235	190	160	150	24	3	4.5	8-23	190	180	597
150	100	355	290	204	250	46	3	4.5	12-34	150	300	250	218	204	30	3	4.5	8-26	280	260	738
